Ferrite Pot Magnet with External Male Threaded Stud,Ferrite Pot magnets with threaded stem,Ferrite magnet glued to steel cup,Ferrite Pot Magnet with Boss Mounting

Ferrite Pot Magnet with external male threaded
• Material: hard ferrite (ceramic)
•Maximum operating temperature is 200°C
•Excellent resistance to corrosion
• Mild steel pot with zinc or nickle plated body
• Coating: Zinc, Nickel or according to customer’s requirement
•Size: D 10 mm – D 63 mm or according to your size or drawings.
•Application: Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings,Light fixtures,Fittings
Quantity:
Inquire

Product Details:

Ferrite pot magnet with external thread is made of ferrite(ceramic) magnet,it as a material has a very good resistance to corrosion and has a high maximum operating temperature making it a very versatile magnetic material. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. Ferrite round base pot magnets come in avariety of forms such as with hook or eyebolt attachments .

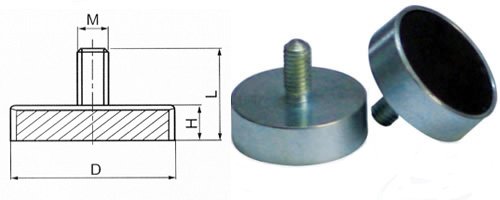

Pfm7
Code Shell Dimensions(mm) Weight(g) Pull(N)
D H L M
PFM7-01 Fe37 10 4.5 11.5 4 3 4
PFM7-02 Fe37 13 4.5 11.5 5 5 11
PFM7-03 Fe37 16 4.5 11.5 6 7.5 18
PFM7-04 Fe37 20 6 13 6 16 30
PFM7-05 Fe37 22 7 17 5 21 35
PFM7-06 Fe37 25 7 15 6 25 40
PFM7-07 Fe37 32 7 17 5/6 46 80
PFM7-08 Fe37 40 8 18 8 54 120
PFM7-09 Fe37 50 10 20 8 100 200
PFM7-10 Fe37 63 14 24 8 160 350
