Large Power Alnico Horseshoe Magnets

Alnico Powerful Horseshoes Magnets:
Material:Cast Alnico 5
Painted: Unpainted
Size:Customized as your required
Shape: Horseshoes
Lead Time:25-30days
Quantity:
  • DunBen

Alnico  Power Horseshoes magnets
Alnico power horseshoe magnet is large and powerful.Alnico horseshoe magnet is a classic Alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet. they are all Alnico horseshoe magnets but have different sizes and performances.

Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of 550 degrees C. The Alnico horseshoe magnets are supplied in natural (uncoated / unpainted) and red paint finishes.They usually go with a zinc plated steel keeper.

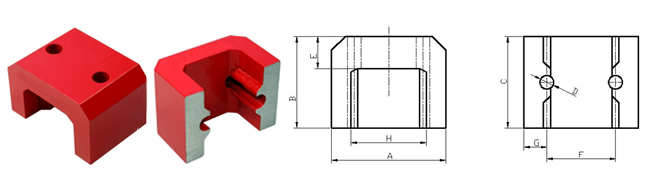

alnico horseshoe51draw
Dimension(mm)
PartNo A B C D E F G H Weight Min Pull(N) Painted
HS5701 57.2 35 45 8 12 31.8 12.6 35 0.37kg 235 Red
HS5702 60 39.2 62 7 13.2 29 15.5 32 0.60kg 250 Red
HS5703 69.9 41.3 57.2 7.9 15.1 38.1 16.3 41.3 0.71kg 370 Red
HS5704 79.4 54 83 9.5 17.5 43 18 48 1.45kg 470 Red

If you are in any doubt about the choice of Alnico magnet, its size or need technical assistance, please contact us for assistance. And if you need a quotation for higher quantities of Alnico or a custom Alnico magnet shape or Alnico assembly, please contact us.
