AlNiCo Holding Magnet With External Threaded, Deep Pot Holding Magnet AlNiCo with neck / pin, Bar Cylindrical Rod AlNiCo Magnet steel body with neck

Alnico Pot Magnets
• 450° maximum operating temperature
• Alnico 5 magnet material and mild steel pot
• Natural or painted finish available
• Good corrosion resistance
Quantity:
Inquire

  • DunBen

Deep pot holding magnet with neck/pin – Alnico Deep Pots with Zn coating and external  threaded

Alnico deep pot  magnet  assemblies are constructed of alnico magnets encased in plated steel bases.They provide a compact, high power magnetic source, and are used for traction, lifting, sorting, clamping and retrieval.

Application:

Alnico Pot Magnets can be used in higher temperature applications and where the pull force needs to change as little as possible with temperature variation. Alnico Pot Magnets can also be used in corrosion resistance applications.


Alnico magnets properties:
Produced by the casting or powder metallurgical techniques
An allow composed of matrix of Al-Ni-Fe-Co
Very hard and brittle
Poor resistance to demagnetization
Produce good flux density at a reasonable cost
Excellent stability over a wide temperature range

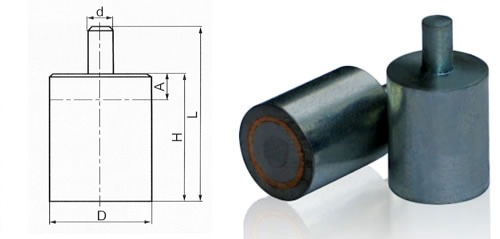

pal2

Code Shell Dimensions(mm) Coating Pull(N)
D H A L d

PAL2-01 Fe37 6 20 12 28 3 Zn 1.5
PAL2-02 Fe37 8 20 11 28 3 Zn 3.5
PAL2-03 Fe37 10 20 10 28 4 Zn 7
PAL2-04 Fe37 13 20 9 28 4 Zn 10
PAL2-05 Fe37 16 20 5 28 5 Zn 18
PAL2-06 Fe37 20 25 6 33 6 Zn 42
PAL2-07 Fe37 25 35 10 45 8 Zn 96
PAL2-08 Fe37 32 40 8 50 10 Zn 180
PAL2-09 Fe37 40 50 10 70 15 Zn 240
PAL2-10 Fe37 50 60 12 85 18 Zn 420
