What is Permanent Magnetic Lifter / handling universal permanent lifting magnet?

Views:2     Author:Site Editor     Publish Time: 2019-08-16      Origin:Site

DBMAG supply 7 standard models available from PML-100 to PML-6000 and we also produce this product per customed! These strong lifting magnets get the job done quickly and efficiently and are easy to use. Nothing could be easier or safer and you simply attach the lifter onto the crane hook, lower the lifter onto the work piece, turn the lever to the "ON" position and then lift the component and unload the components only by turning the lever to the "OFF" position.

We offer a range of 7 heavy-duty permanent magnetic lifters designed to provide maximum safety for a wide range of lifting applications, up to 6000 Kgs. A safety catch ensures the lifter cannot be turned off automatically. These lifters comply with EC council directive 98/37/EC.

These powerful permanent magnetic lifters can be used on flat or round ferrous work pieces. They can be combined with transporting hoists or integrated as part of a load or unload system.

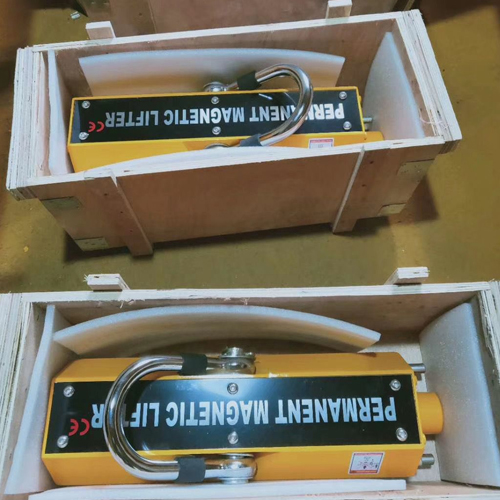

 magnetic lifterA-20

Model Rated lifting
strength Cylindrical lifting strength Max pull-off strength L B H R Operation
temperature Dead weight

Model

Rated lifting
strength

Cylindrical lifting strength

Max pull-off strength

L

B

H

R

Operation
temperature

Dead weight

(kgf)

(kgf)

(kgf)

(º C)

(kg)

PML-100A

100

50

350

64

92

67

107

< 80

3

PML-300A

300

150

1050

92

162

91

155

< 80

7.5

PML-600A

600

300

2100

122

233

118

196

< 80

23

PML-1000A

1000

500

3500

179

268

164

255

< 80

55.5

PML-2000A

2000

1000

7000

234

378

212

426

< 80

125

PML-3000A

3000

1500

10500

310

497

252

505

< 80

220

PML-6000A

6000

3000

21000

442

621

210

548

< 80

440

Contact Us Please if the size you need is not listed below and we will produce this kind of products according to your special requirement .

Our Packaging:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

magnetic lifter packing1

magnetic lifter packing2
