Alnico deep pot holding magnet with inner thread ,Holding Pot Magnet with red enamel lacquered coating, and internal threaded, Red AlNiCo Deep Pot magnets

Alnico Pot Magnets
• 450° maximum operating temperature
• Alnico 5 magnet material and mild steel pot
• Natural or painted finish available
• Good corrosion resistance
Quantity:
Inquire

  • DunBen

Deep pot holding magnet with inner thread – Alnico Deep Pots with red coating and internal threaded

Alnico deep pot  magnet  assemblies are constructed of alnico magnets encased in plated steel bases.They provide a compact, high power magnetic source, and are used for traction, lifting, sorting, clamping and retrieval.

Application:

Alnico Pot Magnets can be used in higher temperature applications and where the pull force needs to change as little as possible with temperature variation. Alnico Pot Magnets can also be used in corrosion resistance applications.


Alnico magnets properties:
Produced by the casting or powder metallurgical techniques
An allow composed of matrix of Al-Ni-Fe-Co
Very hard and brittle
Poor resistance to demagnetization
Produce good flux density at a reasonable cost
Excellent stability over a wide temperature range

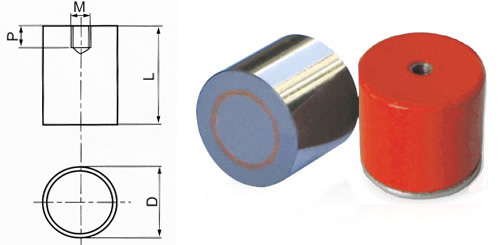

pal3
Code Shell Dimensions(mm) Coating Pull(N)
D L M P
PAL3-01 Fe37 8 8 3 5 Ni 5
PAL3-02 Fe37 10 10 3 4 Ni 8
PAL3-03 Fe37 12 16 5 4 Red 15
PAL3-04 Fe37 12 17 4 4 Ni 10
PAL3-05 Fe37 16 20 4 5 Ni 18
PAL3-06 Fe37 17 20 4 7 Ni 18
PAL3-07 Fe37 20.6 19 6 8 Ni/Red 40
PAL3-08 Fe37 20 24 4 8 Ni 42
PAL3-09 Fe37 24 30 5 8 Ni 80
PAL3-10 Fe37 32 40 8 9 Ni 180

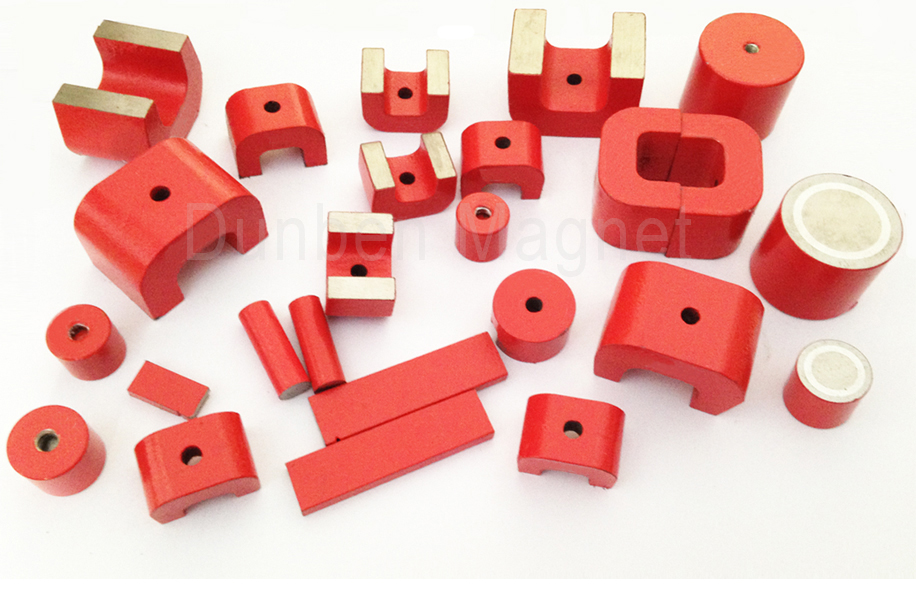

AlNiCo Holding magnets – AlNiCo red magnets range
» AlNiCo-flat holding magnet with bore and counterbore, red coated (AlNiCo Shallow Pot Magnets)
» AlNiCo-bar holding magnet with internal thread, red coated (AlNiCo Deep Pot Magnets)
» AlNiCo-bar holding magnet with internal thread, red coated (AlNiCo Deep Pot Magnets)
» AlNiCo-rectangular bar or block holding magnet, red coated (AlNiCo Rectangular Bar Magnets)
» AlNiCo-cylindrical bar or rod holding magnet, red coated (AlNiCo Cylindrical Bar Magnets)
» AlNiCo-horseshoe magnet, partly with bores, red coated (AlNiCo Pocket Magnets)
» AlNiCo-round magnet with groove and bore, red coated (AlNiCo Button Magnets)
» AlNiCo-holding magnet with pull off screw, red coated
alnico pot magnet4
