Automatic Permanent Magnetic Lifter,Automatic Lifting Magnet, Automatic Magnetic Lifter,Automatic Magnetic Plate Lifter,Automatic Steel Plate Magnetic Lifter

Automatical Magnetic Lifter:
Dimension : 664-964 mm
Rated Lifting Capacity: 1000-5000 KG
Test Max Pull off Force:3500-15000 KG
Weight: 190-600 KG
Widely used in shipbuilding and engineering machinery industry.
Quantity:
  • DunBen

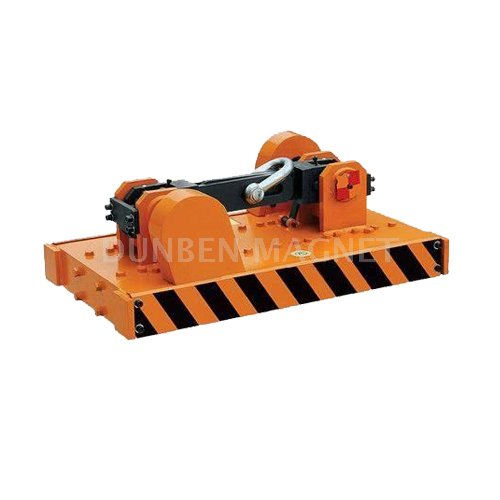

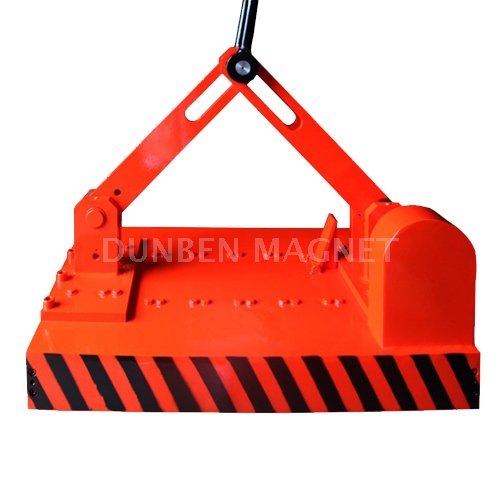

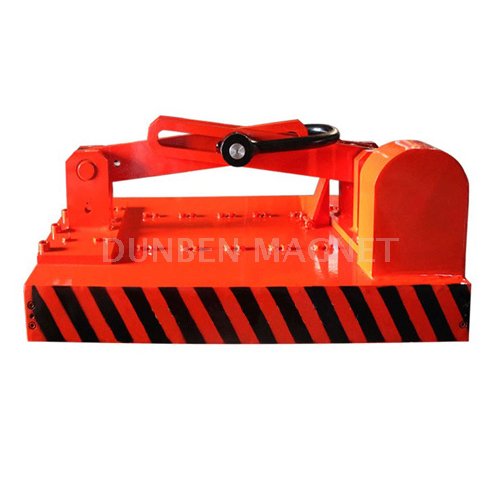

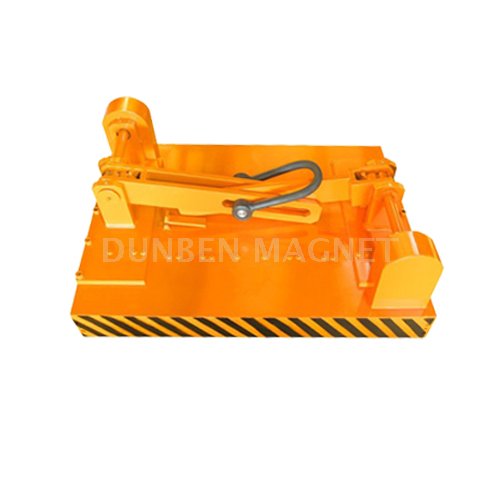

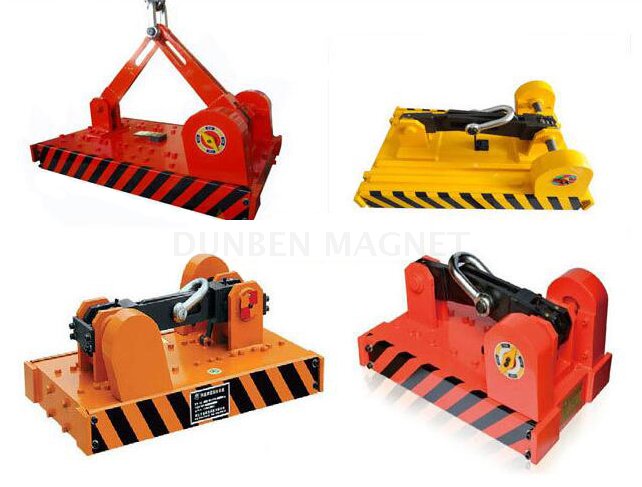

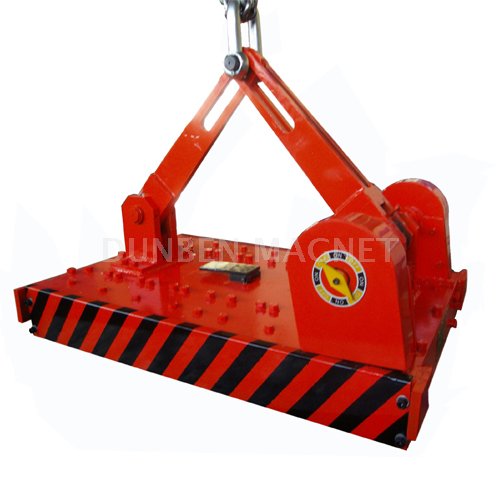

Automatic Permanent Magnetic Lifter
Feature:

1. Unique construction: using high performance neodymium magnetic material as main part, make its volume smaller, lifting force bigger and keep long time magnetic force.
2. Automatically suck or discharge materials.
3. No one operation can be realized.
4. Do without electricity, can replace electromagnet in some workplace, more safety in working.
5. Energy efficiency: this kind of lift device can hold plate material, Min.thickness can be 4mm , max. Length can be 30meters and max. Weight can be 50 tons.
6. Can be used separately, or conbine severel together for lifting more bigger plate steel.
7. Significantly increase productivity.
8. No need to move the switch by operator, loading and discharge can be completed by itself.
9.Widely used in shipbuilding and engineering machinery industry.

Usage and caution

Designed for lifting steel sheet. On and off magnetic force automatically without electricity,energy saving and emission reduction. For example: one steel sheet with 24m long,2m wide,more than ten tons, only need 10 automatic permanent magnetic chuck can lift it.


Security Notice
1.During lifting, no mare than rated lifting weight. Operator should operate carefully to make it move slowly. Helper should also slip rope of the lifted material to prevent swing.
2.Safety factor of this type device is 3.5 times as much as max.rated lifting weight.
3.Do not need manual operation, the lifter auotcomplete holding and releasing work. Unique magnetic circuit design make it zero remanence.

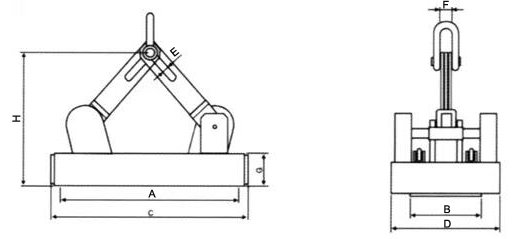

magnetic lifterI-3

Part No. Rated Lifting Capacity(KG) Size (mm) Test Max Pull off Force (KG) Net Weight
A B C D E F G (KG)
DB-ML-1 1000 690 260 762 432 26 50 92 3500 190
DB-ML-1.5 1500 664 260 736 432 26 50 92 5500 220
DB-ML-2 2000 757 330 830 500 26 50 112 6500 290
DB-ML-3 3000 862 394 940 578 30 56 125 9000 420
DB-ML-5 5000 964 452 1040 666 34 80 141 15000 600

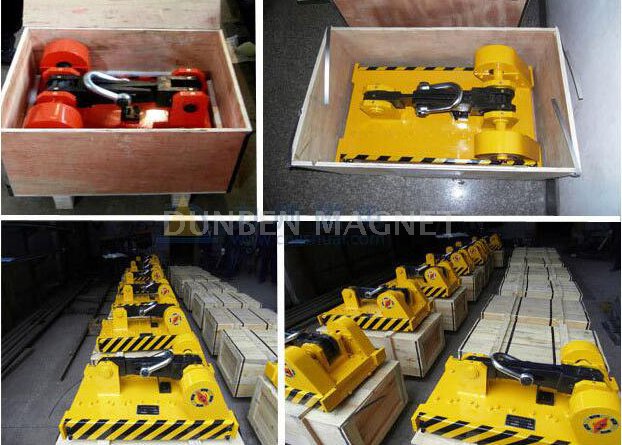

Packin g :
magnetic lifterI
