B Series Permanent Magnetic Lifter,Universal Permanent Magnetic Lifter,Super Powerful Magnetic Lifter,Heavy Duty Handling Lifting Magnet

Neodymium Magnetic Powered System
Compact and lightweight
Apt for Flat & round material
High lift to its weight ratio
Easy operation facilitated with On/Off system
It improves plant safety as there is no direct contact with workers
Huge & heavy work pieces can be moved and handled safely, easily by a single operator

Quantity:
  • DunBen

Permanent Magnetic Lifter
Permanent magnetic lifter has a magetic system formed by NdFeb magnetic materials with strong magnetism. It can control magnetic switch by rotating the handle. It has the characteristics of using no electricity, small volume, light weight, great holding force, easy and safe operation, constant magnetic.Permanent magnetic lifter is a new concept product for lifting and handling steel plates, pipes, beams and cylindrical work pieces of ferromagnetic materials. On and off of the magnetic path is controlled by turning the manual handle. They are been used to lift and transport the steel and iron for factories, docks, ware houses, transportation etc.  According to the different requirements of customers, we have designed and produced multiple series of lifters.

Features:
1. Available in the lifting capacities of 100kg- 6000kg.

2. 3.5 times for safety factor.

3. Self-locking safety block prevents accidental deactivation.

4. No electrical power required.

5. NdFeB material with high density and strong magnetism.
6.”V” style design at the bottom of lifter, can lift round steel and steel plate.

6.  Multifunction and severl magnet lifters can use together to holding the loads.

Operation:

1.Clean the surface of the load, place the lifter in the center of the load and make sure the poles are in full contact with the load. Make sure the weight of the load is no more than the rated value of the lifter.

2.Pull up the handle and rotate the handle to the “ON” position, then release the handle. The security key on the handle will automatically lock the handle.

3.Set the load on the ground or support. Ensure the load is firmly supported and completely in place before releasing the load.

4.Pull up the handle and rotate completely to the “OFF” position. The lifter is now in the neutral condition, can be taken away from the load.

Maintance:

1.Please check the easy wearing parts frequently, such as the locking block, handle and loop pin. If they are worn 10% off,     please change them.

2.Please stay the “OFF” condition when not working.

3.Keep the pole surface clean. And treat some oil on the surface of the pole after use to protect it from rust.

4.Ensure the store environment dry, and don’t put them directly on the floor.

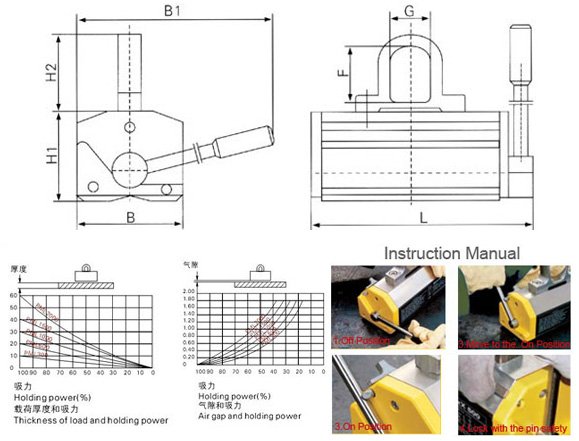

magnetic lifterB- parameter2

Code Dimensions(mm) Weight(kg)
L L1 B H1 H2 B1 F G
PML-300B 203 165 87 89 68 223 45 38 10
PML-600B 266 226 112 109 86 287 58 45 21
PML-1000B 330 290 148 125 95 364 60 52 40
PML-1500B 385 330 178 145 118 447 70 65 65
PML-2000B 470 420 178 145 118 487 70 65 83
Shape Steel plate(钢板) Circular Steel Shape(圆形钢材)
Code 最大吊重
MaximumHangs
the lifting capacity(Kg)
最小厚度
Minimum
thickness
(mm)
最大长度
Maximum length
(mm
最大吊重
MaximumHangs the lifting capacity(Kg)
最大直径         Maximum diameter
(mm)
最大长度
Maximum length
(mm)
最小厚度
Minimum
thickness
(mm)
PML-300B 300 20 1500 150 300 1500 12
PML-600B 600 30 2000 300 400 2000 20
PML-1000B 1000 40 3000 500 450 3000 28
PML-1500B 1500 50 3000 750 500 3000 34
PML-2000B 2000 60 3000 1000 600 3000 40
