Bread arc magnets with countersunk for elevator motors

Material: N33SH NdFeB Magnets for Elevator Motors, Permanent Magnets, Rare Earth Magnets
Dimension: R(mm)x r(mm)x W(mm)x T(mm)x A° with tolerance +/-0.1 or +/-0.05mm
Magnetizating Direction: Through thickness
Surface Treatment: Black Epoxy Coating
Max Working Temperature: 150℃
Magnetic Properties:
Residual Magnetic Flux Density (Br): 11.3-11.7 KGs (T): 1.13-1.17 T
Energy Density (BH)max: 31-34 MGOe 247-272 KJ/m³
Coercivity Force (Hcb): ≥10.6 KOe ≥844 KA/m
Intrinsic Coercivity Force (Hcj): ≥20 KOe ≥1592 KA/m

Quantity:
  • DunBen

Description:

  The Arc magnet mainly have straight arc ,oblique arc and bread arc. This bread arc magnet is widely used in a series of elevator motors. The precision of magnet dimension tolerance and the consistency of property is very critical elements for motor applications. Meanwhile, in order to enhance rust-resisiting ability of magnet coating, we take Black Epoxy  to make protection.

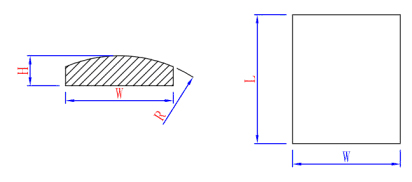

bread draw
ndfeb coating.jpg
Magnetization Directions:

磁化方向
