Customized super strong industrial electro rare earth neodymium arc generator permanent magnet

Name:Neodymium Arc/Segment Magnet
Magnet Material:NdFeB / Neodymium / Rare Earth
Magnetic Grade: N40,N48,N42H
Magnet Shape:Arc / Segment / Tile
Surface & Coating:Nickel (Ni+Cu+Ni)
Solution:Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
Quantity:
Inquire

 Description:
Arc Segment Magnets is one special shape of permanent magnets, which widely assembly into rotor and stator of PM Servo motors. It is always manufactured via Wire Cutting and grinding machining process etc .

Regular Arc magnets or Segment magnets have the following important factors such as ,Outer Diameter Or Outer Radius,Inner Diameter or Inner Radius ,Degree of Angle,Thickness,Length ,Round Edge etc. Generally speaking, Arc Magnets are all made as Customer Design and as Special requirement on shapes, dimensions, grades, coatings etc.

and if  you would like us to assemble your neodymium arc magnet s onto your rotor(or any other assembly),Please contac us -we can supply magnetic assemblies as well as the magnets.

Our  Neodymium Segment Magnets  is good in quality and competitive in price. Hang Zhou Xiaoshan Dunben Magnet Co.,Ltd are manufacturer and supplier of  Neodymium Segment Magnets  .   With rich experience on serving for motors manufacturer,  Dunben Magnet can produce all shapes of arc segment magnets with different coatings, such as NiCuNi, Black Ni, Epxoy and Phosphatised coating.

We have an extensive range of Permanent Magnets ( Neodymium Segment Magnets  ) in various materials such as Sintered Neodymium Iron Boron (NdFeB), Rare Earth Cobalt Alloy (SmCo), Bonded Neodymium Iron Boron, Sintered Hard Ferrite(Ceramic), Soft Ferrite and Aluminium Nickel Cobalt Alloy(AlNiCo). Majority of our magnets are shaped as segment, disc, rod, bar, block, ring, cylinder, arc, cube, sphere, wedge, horseshoe and more. We guarantee top  Neodymium Segment Magnets  quality and 100% customer satisfaction!

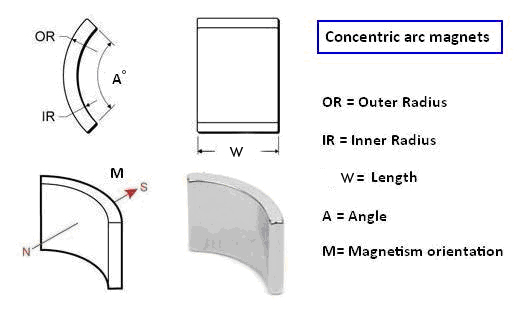

We list some diagram of common types of permanent magnet segments as follows for your information.
arc drawarc draw2
em neodymium arc segment magnets
Shape
arc segment/ Customzsed  (block,disc,Cylinder, Bar, Ring, Countersunk, Segment,

ball shape,hook,cup, Trapezoid, Irregular shapes ,etc)
Performance N40 /Customised (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...)
Size:  Various kinds or according to customers' request
Coating Ni-Cu-Ni, Nickel  /   Customised (Zn,NiCu-Ni,Ni,Gold, Silver, Copper, Epoxy, Chrome ,etc)
Size Tolerance

 		 ±0.05mm for diamater/thickness, ±0.1mm for width/length
Magnetization
Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multipoles magnetized,

Radial Magnetized. (Customzied specific requirements magnetized)
MOQ 10PCS
Application
Super Strong  Neodymium Magnet Price are widely used in many fields, such as motors, sensors,

microphones, wind turbines, wind generators,  printer, switchboard,packing box ,

loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect.
Lead Time Within 20 working days
ndfeb coating.jpgndfeb flow
