Quantity: | |
---|---|
Dunben Magnet Co.,Ltd offers excellent selection of Magnetic Lifters, also be called Lifting Magnets, including Permanent Magnetic Lifter, Universal Magnetic Lifter, Super Magnetic Lifter, Industrial Magnetic Lifter, Double Circuit Magnetic Lifter, Eletro Permanent Magnetic Lifter, Powerful Magnetic Lifter and other Magnetic lifter tools.
Our Holding Magnetic Lifter is produced with super strong Neodymium magnets, with your safety in mind. Operation is by way of turning the manual handle once on the operating surface. Magnetic Lifters are a versatile, cost effective and convenient way of loading, unloading and moving steel plates, blocks or cylinders in a safe manner.
In loading and unloading, the lifter can hoist iron/steel blocks, cylinders and others onto magnetic materials for linkage or connection. It is very convenient for application in loading, unloading and moving. magnetic lifters are the most ideal lifting facility for factories, docks, warehouses and transportation.
Dunben magnetic lifters are light and ingeniously structured, easy for application, strong magnetic attraction and safe in handling. They have a 3:1 safety built into each unit. Another key benefit of the Magnetic Lifters is that they are fitted with the strongest magnetic materials available, Rare Earth Neodymium magnets, which will never weaken, providing durable and consistent operation.
Features:
1. Composed of Nd-Fe-B permanent magnetic material with high density and strong magnetism.
2.Available in the lifting capacities of 100kg- 6000kg.
3.The handle’s movement changes the magnetic force of the ferromagnetic system to achieve adsorption and release to the workpiece.
4.There is a steel ring on top of the magnetic lifter for hoisting objects,and a V-shaped groove at the bottom for holding corresponding cylindrical objects. The force magnet guarantees the indefinite high degree of concentration also the stable strength.
5. No electrical power required. with new designed and anti-collision handle, this permanent magnetic lifter is more durable.
6. The safe load coefficient is 3.5 times,even if is hung between the work piece and the lifter has a bigger air gap,also can guarantee the best active status.
7. Mainly uses in the hoisting process with by the hoisting work piece connection,uses in to move the steel plate and other magnetic induction work piece.
8. Safe and reliable operation,the compact light weight widely application in factory,wharf,warehouse,in transportation profession.
9. The improvement loading and unloading transporting working condition,enhances the working efficiency.
10. Multifunction and severl magnet lifters can use together to holding the loads.
1.Clean the surface of the load, place the lifter in the center of the load and make sure the poles are in full contact with the load. Make sure the weight of the load is no more than the rated value of the lifter.
2.Pull up the handle and rotate the handle to the “ON” position, then release the handle. The security key on the handle will automatically lock the handle.
3.Set the load on the ground or support. Ensure the load is firmly supported and completely in place before releasing the load.
4.Pull up the handle and rotate completely to the “OFF” position. The lifter is now in the neutral condition, can be taken away from the load.
Maintance:
1.Please check the easy wearing parts frequently, such as the locking block, handle and loop pin. If they are worn 10% off, please change them.
2.Please stay the “OFF” condition when not working.
3.Keep the pole surface clean. And treat some oil on the surface of the pole after use to protect it from rust.
4.Ensure the store environment dry, and don’t put them directly on the floor.

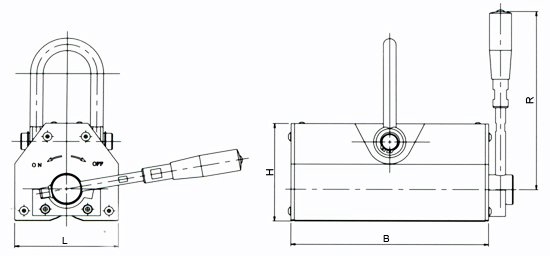

Model | Rated lifting strength(Kgf) | Cylindrical lifting strength(Kgf) | Max. pull-off strength(Kgf) | L (mm) | B (mm) | H (mm) | R (mm) | Operation Temp.(℃) | Dead weight(Kg) |
PML100D | 100 | 50 | 350 | 64 | 92 | 67 | 148 | <80 | 3.0 |
PML300D | 300 | 150 | 1050 | 92 | 162 | 91 | 180 | <80 | 7.5 |
PML600D | 600 | 300 | 2100 | 122 | 233 | 118 | 185 | <80 | 23.0 |
PML1000D | 1000 | 500 | 3500 | 179 | 268 | 164 | 210 | <80 | 55.5 |
PML2000D | 2000 | 1000 | 7000 | 234 | 378 | 212 | 365 | <80 | 125.0 |
