Ferrite Flat Pot Magnets, Ferrite Flat Holding Pot Magnets, Ferrite Blind Ended Shallow Pot Magnet , Ferrite magnets in steel pot, Glue-in ferrite pot magnets, Ceramic flat pot magnet

ferrite flat cup magnets:
1.Designed with Ferrite magnet
2.High performance, coercive force and maximum energy
3.Painted:Nickel or Zn

Quantity:
  • DunBen

Product Details:

  Ferrite flat pot holding magnets, also called ceramic pot ferrites, have hard ferrite permanent magnets embedded in a steel pot .The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface.With no moving parts the Ferrite pot requires no maintenance beyond ensuring the magnet is clean and has a long life. Our ceramic flat pot holding magnets are the best option for those who require a good value magnet with a strong pull force.

Application:
Ferrite Pot Magnets are useful for corrosion resistance, marine, low cost and higher temperature applications.So  they are ideal for using in a fixing application such as Office, Home, Point of Sale Displays, Exhibitions.

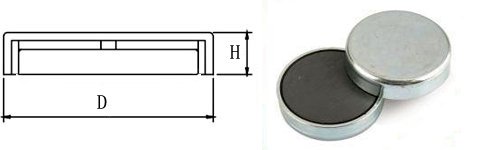

fpt1
Code
Size(mm)
Power Force(kg)
Weight(g)
D
H
PFM5-01
10
4
0.38
3
PFM5-0 2
13
4.5
0.85
5
PFM5-0 3
16
4.5
1.7
6
PFM5-0 4
20
6
2.5
11
PFM5-0 5
25
7
3.2
22
PFM5-0 6
32
7
6.5
32
PFM5-0 7
36
7.7
8
45
PFM5-0 8
40
8
11.5
60
PFM5-0 9
47
9
16
90
PFM5-10
50
10
21
110
PFM5-11
57
10.5
28
145
PFM5-12
63
14
32.5
240
PFM5-13
80
18
59
520
PFM5-14
100
22
90
940
PFM5-15
125
26
125
1700
