Ferrite Pot Magnet with Screwed Bush , Ferrite Round Base Pot Magnet with Internal Female Threaded (Boss Mounting) , Ferrite Shallow Pot Threaded Bushing,Ferrite(Ceramic) Pot magnets with screw socket

Share to:

Ferrite Pot Magnet with Screwed Bush , Ferrite Round Base Pot Magnet with Internal Female Threaded (Boss Mounting) , Ferrite Shallow Pot Threaded Bushing,Ferrite(Ceramic) Pot magnets with screw socket

Ferrite Shallow Pot Magnets:
• Material: hard ferrite (ceramic)
• Excellent resistance to corrosion
• Mild steel pot with zinc or nickle plated body
• Coating: Zinc, Nickel ,White or according to customer’s requirement
• Size:Size: D 10 mm – D 125 mm or according to your size or drawings.
• Maximum operating temperature is 200°C
• Application: Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings,Light fixtures,Fittings

Quantity:



Inquire

Product Description

Product Details:
Ferrite Flat Pot Magnets with internal threaded bushing have thick steel backing with female thread section. With help of threads like M3 and M14 screw and a bolt, these magnets have a platform, which can hold the pot magnets with much efficient internal thread with Stud/Boss mounting on the place.
Ferrite Internal Female Threaded Stud Pot Magnet has range which offer superlative range, which clamp down the forces from 4 N to 1300 N. It also come different shapes and sizes ranging from 10mm to 125mm in diameters.

These pot magnets is made of ferrite disc magnets, within the area of pot assembly makes it easily mountable on any surface. The Hard ferrite versions have maximum temperature up to +200 Degrees C. It as a material has a very good resistance to corrosion and has a high maximum operating temperature making it a very versatile magnetic material.

Ferrite Shallow Pot Magnets Screwed Bush have a screw socket,into which you can screw hooks, eyelets, etc. We also carry identical hook magnets as well as eyelet magnets.

These ferrite magnetic pots are suitable for hanging up objects securely such as Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings,Light fixtures,Fittings.

Custom sized Hard Ferrite (Ceramic) Pot Magnets can be made upon request. Please contact us!

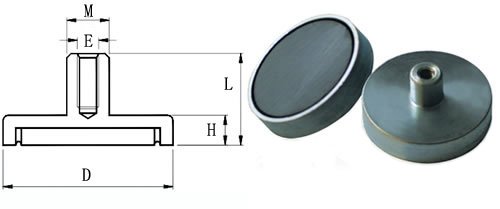

pfm4

Code	Shell	Dimensions(mm)				Magnetic Force(kg)	Weight(g)
Code	Shell	D	H	L	M&E	Magnetic Force(kg)	Weight(g)
PFM4-01	Fe37	10	4.5	11.5	6 & M3	0.45	4
PFM4-02	Fe37	13	4.5	11.5	6 & M3	1.15	6
PFM4-03	Fe37	16	4.5	11.5	6 & M3	1.7	7
PFM4-04	Fe37	20	6	13	6 & M3	3	12
PFM4-05	Fe37	25	7	15	8 & M4	4	25
PFM4-06	Fe37	32	7	15	8 & M4	8	34
PFM4-07	Fe37	40	9	17	10 & M5	12.5	62
PFM4-08	Fe37	47	9	17	8 & M4	18.3	100
PFM4-09	Fe37	50	10.5	18.5	12 & M6	22.1	115
PFM4-10	Fe37	57	10.5	18.5	8 & M4	28.5	180
PFM4-11	Fe37	63	14	30	15 & M8	32.5	245
PFM4-12	Fe37	80	19	40	20 & M10	59	520
PFM4-13	Fe37	100	21	45	22 & M12	90	940
PFM4-14	Fe37	125	24	50	25 & M14	125	1720
