Flat SmCo Shallow Pot Magnet,High Working Temperature Samarium Cobalt Flat Cup Magnets,Samarium Cobalt Blind Ended Shallow Pots, SmCo Glue-in pot magnets, Flat SmCo Gripper

SmCo Shallow Pot Magnets:
• 200° maximum operating temperature
• Excellent resistance to corrosion
• Mild steel pot with zinc or nickle plated body
• Coating: Zinc, Nickel, Chrome, Epoxy etc
Quantity:
Inquire

Product Details:
Samarium-cobalt(SmCo) magnets are the second most powerful magnets, with Neodymium being the most powerful. SmCo Shallow Pot Magnets are also rare-earth metal based. The main components are samarium (Sm) and cobalt (Co), two elements that can be mixed in ratio 1:5 or 2:17. The final composition takes effect on magnetic and thermal parameters of magnets. A hard and brittle material, SmCo has high energy and is very resistant to external demagnetizing fields. Maximum working temperature is up to +250°C (SmCo5) and up to +300°C (Sm2Co17)

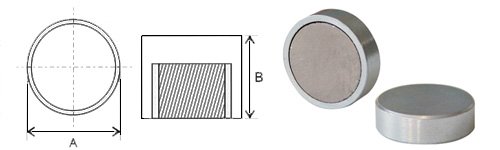

smp1
Code Shell Dimensions(mm) Coating Pull(N)
A B
PSC1-01 Fe37 6.0 4.5 Zn 6
PSC1-02 Fe37 8.0 4.5 Zn 15
PSC1-03 Fe37 10.0 4.5 Zn 30
PSC1-04 Fe37 13.0 4.5 Zn 60
PSC1-05 Fe37 16.0 4.5 Zn 100
PSC1-06 Fe37 20.0 6.0 Zn 150
PSC1-07 Fe37 25.0 7.0 Zn 270
PSC1-08 Fe37 32.0 7.0 Ni 450
