High Magnetic Cast Rectangle Alnico 5 Channel Magnet，Strong Bar Holding Channel Magnet China Supplier

High Performance Magnetic Cast Alnico Channel Magnet :
Material:Cast alnico magnet
Grade: alnico5 magnet
Size:customized
Shape: Channel
Magnetism direction: Customzied Specific Requirements
Tolerance: +/-0.01mm
Application: holding applications and magnetic separators

Quantity:
Inquire

  • DunBen

High Magnetic Cast Alnico Channel Magnet

     Alnico channel magnets can be used for various holding applications and also for removal of tramp iron from chutes carrying grains, plastics, glass, minerals & other materials conveyed in powder or granular form.
    Alnico channel bar magnets offer high temperature and corrosion resistance as well as greater magnetic pull than ceramic magnets. They are unpainted Gray in color.

    Alnico channels are magnetized as a horseshoe with the South Pole on one side of the channel & the North Pole on the other side.

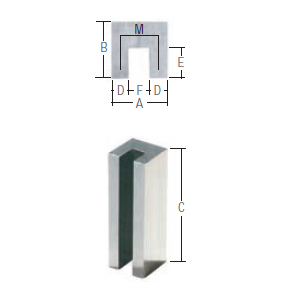

alnico channel draw
  Channel Magnets  Product Specifications:
Item# A B C D E F Pull Lbs
DBCM01 0.625″ 0.375″ 5.000″ 0.187″ 0.125″ 0.250″ 16
DBCM02 0.500″ 0.494″ 6.000″ 0.162″ 0.254″ 0.177″ 26
DBCM03 0.875″ 0.750″ 6.000″ 0.250″ 0.438″ 0.375″ 45
DBCM04 1.000″ 0.812″ 6.000″ 0.312″ 0.437″ 0.375″ 51
DBCM05 1.250″ 1.000″ 6.000″ 0.406″ 0.500″ 0.438″ 62
1.All Measurements are in inches (unless otherwise noted)
2.Unless otherwise specified, magnets will be furnished in magnetized condition
3.Holding forces are approximate. These are average values obtained under laboratory conditions. Size, shape, and material of the test piece may affect actual pull forces


   Dunben Magnet ’ alnico channel magnets are made of cast Alnico 5 material. All dimensions approximate and as cast with pole faces ground smooth. Other sizes are available upon request. Contact us at Email or Call if you don’t see what you’re looking for in this brief listing.
