High quality cast alnico button magnet OEM

Material:Cast alnico magnet
Grade: alnico 5
Size:customized
Magnetism direction: horseshoe
Tolerance: +/-0.05 mm
Application: welding, wood cutting, sign making

Quantity:
  • DunBen
Alnico button magnets  are cylindrical type holding magnets. The north and south poles are on the same plane and separated by a slot gap. They have convenient mounting holes. They are good for use as work holding devices for welding, wood cutting, sign making and other applications, or for reed switch operation. Each button magnet includes a metal keeper for storage and to help retain magnetic strength.  A lnic o button  magnets can be plated with  blue or red.

Characteristics of Alnico magnets

1. Very temperature stable, great for high heat applications
2. Wide range of working temperatures, up to 550ºC
3. May be ground to size
4. Does not lend itself to conventional machining (hard and brittle)
5. High residual induction and energy product compared to ceramic material
6. Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)

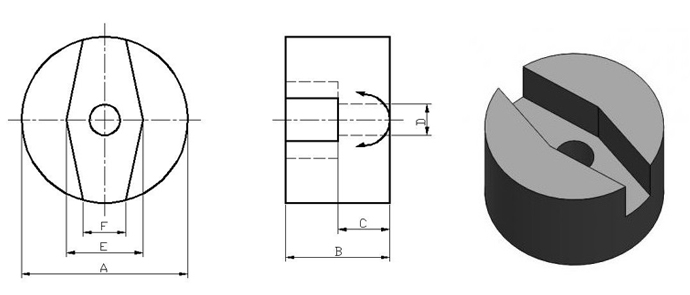

Button draw3
* Dimension(mm)

PartNo A B C D E F Weight Min Pull(N) Painted
HS5801 12.7 9.5 4.7 4 7 4 0.01kg 7 Red
HS5802 19.05 12.7 6.4 4.8 8.7 5.6 0.028kg 19 Red
HS5803 25.4 15.87 8 4.8 8.7 5.6 0.056kg 29 Red
HS5804 31.75 25.4 12.7 7.4 10 7.9 0.113kg 66 Red
