Hopper Magnets,Customized Magnetic Grates, Magnetic Girds, Representative Magnetic Hopper, Grill Magnet, Rare Earth Grate Magnet,Magnetic System Filter,Permanent Magnetic Grill

magnetic grate / magnetic grill
1.Grill magnet adopt superior material #304,#316 stainless steel and strong Neodymium magnet.
2.The type need to be customized, magnetic bar can be moved out of magnetic filter grate

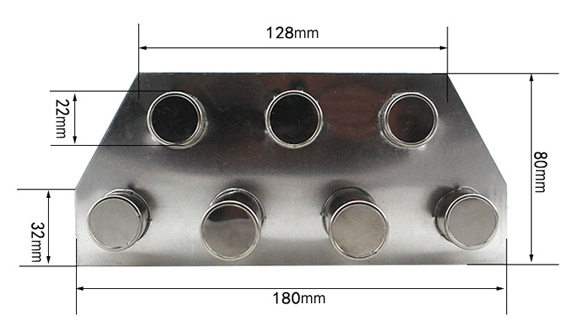

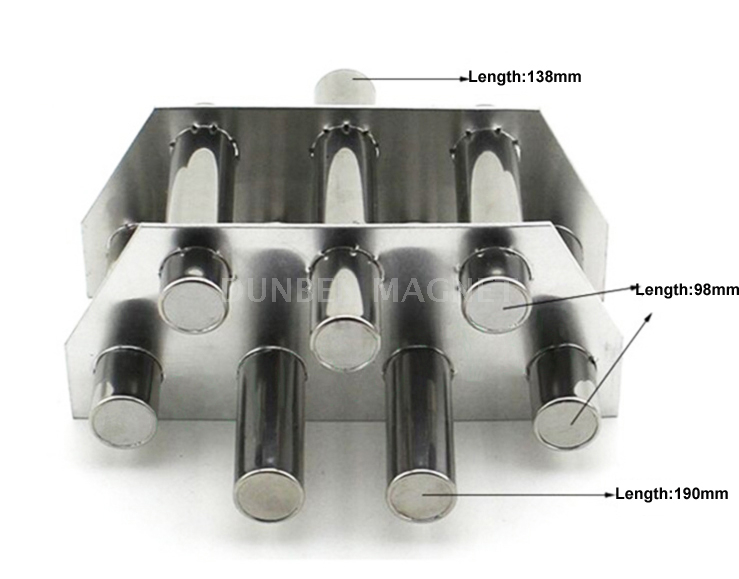

3.Tubes diameter is D22 mm, 7 tubes in two layers;
4.Surface Gauss:3000-12000 Gs
5.Application industry: petroleum chemical industry, steam turbine, machinery, mining, metallurgy, food, pharmacy, ceramics, rubber, textile, plastics other industries.
Quantity:
Inquire

Rare Earth Grate Magnet
Magnetic filter or Magnetic grate,Hopper Magnet is the use of high-quality stainless steel tube and high B value of Neodymium rare earth alloy materials and the use of special methods of production by the magnetic filter bar, fixed by high-quality stainless steel plate made of the framework, constitutes a grate magnet.  The passage of ferrous material by the magnetic attraction of rods, iron-containing material to be adsorbed on the solid wall to ensure that equipment and products in good condition safety.

Features:
  No energy consumption, pollution-free, simple structure, can be installed on production lines or pipes in the entrance and exit, the space-saving, easy installation, bar the use of a staggered arrangement, the magnetic design of well spacing, so that magnetic regions can be more fully utilized.

Application
  Magnetic filter,hopper magnet is mainly used to remove powder, flake and granular material in the ferromagnetic impurities, widely used in ceramics, electricity, mining, plastics, chemicals, rubber, pharmaceutical, food, environmental, pigments, dyes, electronics, metallurgy and other industries.
                magnetic grate7-3
magnetic grate7-2
