Horseshoe Pocket Alnico Magnets With Keeper

Alnico Pocket Magnets
1.550° maximum operating temperature
2.Alnico 5 magnet material
3.Good corrosion resistance
4.Red or Blue painted
5.Horseshoes or U shapes

Quantity:
  • DunBen

Alnico Horseshoes/Minor/ Power magnets
The Alnico horseshoe magnet is a classic Alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet – they are all Alnico horseshoe magnets but have different sizes and performances (e.g. an Alnico power horseshoe magnet is large and powerful compared to the small and weaker Alnico pocket horseshoe magnet).

The Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of 550 degrees C. The Alnico horseshoe magnets are supplied in natural (uncoated / unpainted) and red paint finishes.

The Alnico horseshoe magnets can be offered in other dimensions and grades. We can supply custom made Alnico magnets. You can have other colours as well if you wanted e.g.blue.

If you are in any doubt about the choice of Alnico magnet, its size or need technical assistance. And if you need a quotation for higher quantities of Alnico or a custom Alnico magnet shape or Alnico assembly, please contact us.

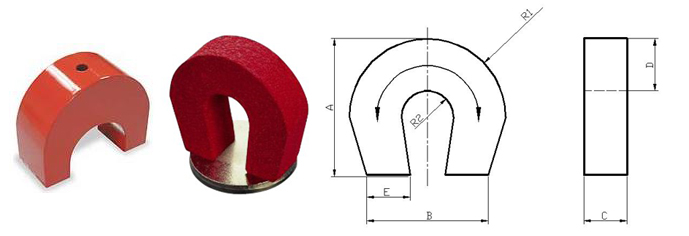

 alnico pocket horseshoe draw

* Dimension(mm)    (The original size specificaton was provided by dunben magnet)
PartNo A B C D E R1 R2 Holes Weight Pull(N) Painted
HS5501 25.4 22.2 7.62 9.54 7.94 14.29 4.75 0 0.030kg 14.7 Red/blue
HS5502 28.50 18.50 6.35 11 4 14.00 6.00 0 0.022kg 30 Red/blue
HS5503 34.93 27.00 15.88 9.525 9.525 16.67 7.14 0 0.082kg 39 Red
HS5504 38.10 41.28 14.27 19.05 15.88 23 6.35 0 0.096kg 110 Red
HS5505 63.5 63.5 19.05 25.53 19.05 38.10 15.87 0 0.422kg 267 Red
HS5506 46 55.56 23.81 27 12.70 57.15 30.15 Ф4.8 0.228kg 142 Red
HS5507 38.89 44.45 11.12 22.225 11.12 11.125 22.225 Ф4.7 0.061kg 71 Red
