Magnetic Filter Rods Tube Magnets for Separator,Stainless Steel Round Magnetic Bars, Strong Round Magnetic Tubes, Magnetic Rods , Magnetic Filter Bars With Two Rods

Round Magnetic Filter Bar:
Material: SS304/316/316L Stainless steel tube+ Neodymium (Nd) magnet and or Ferrite magnets
Outer Diameter Normally D15,D18, D20, D25, D32, D40,D60,D100 mm (3.9″)
Installation End plugs Various
Length:100-2500 mm or customized
Surface Gauss:3000-12000 Gs
Quantity:
Permanent magnetic bar tube magnetic stir bar

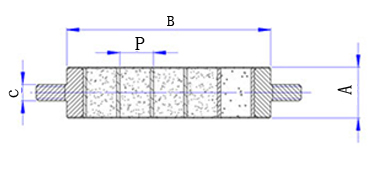

magnetic bar draw2


Material of the Magnetic bar SS304/316/316L Stainless steel tube+ Neodymium (Nd) magnet and or Ferrite magnets
Diameter(A) D15,D18, D20, D25, D32, D40,D60mm etc,
Length(B) 100-2500mm or customized
Surface Gauss 3000-12000Gs
Standard Working Temp <80 degree, but if needed, max working temperature can reach 80-350 degree.
Advantages of magnetic fuel filter No energy consumption, pollution-free, simple structure, can be installed on production lines or pipes in the entrance and exit, the space-saving, easy installation and so on
Applications of magnetic filter Water treatment, Chemical industry, food industry, recycling industry, pharmaceutical industry, other liquid(hydro-material) separation application.

Grade and Working Temp
Grades  N35-N52 N35M-N50M N35H-N48H N35SH-N45SH N30UH-N40UH N30EH-N38EH
W T 80°C/60°C 100°C           120°C 150°C 180°C 200°C
The grades like N48-N52 could meet your requirement on strong power
Standard one like N35 or N38 is okay for your normal applications
If you have requirement on the working temperature, please note it.

Standard Magnetic filter bars, rods, tubes list:
Diameter(mm) Guass(Gs)
16 6000
17 6000,7500
19 6000,8000,9200
20 6000,8000,10000±300
22 6000,8000,9200,10000±300
23.5 6000,8000,10000
25 6000,8000,9000,10000,12000
28 8000,10000,12000
30 10000,12000
32 6000,8000,10000,11000,12000
35.5 8000,10000,12000
38 10000,11000,12000
40 9500
45 9500
50 10000,12000
63 10000,11000,12000
Purchasing guide
1. The normal Diameter 12, 19, 23, 25, 28, 32, 40 mm etc. Length up to 1000mm or more
2.Standard fixation with inner threads of M5, M6, M8 or Outer threads of M5, M6, M8 etc.
3.Customized designs are welcome.
4.Welded through from laser and argon protecting welding. Easy to load and remove our tubes with their standard thread on tubes top ends.

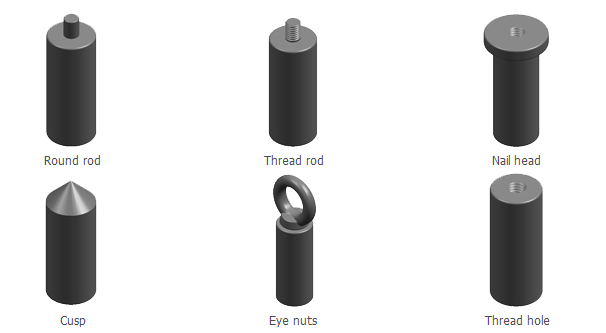

Various end design are available ,such as Nail head ,thread hole ,double screw bolt
magnetic bar draw4
