Magnetic Universal Joint, Magnetic Ball Joints Assembly,Brass Cylinder Nickel Ball Neodymium Magnetic Ball Joint,Strong Powerful Neodymium Ball Joint Magnets

Magnetic Universal Joint
•Made with powerful NdFeB magnet,steel shell or brass house
•Suitable for use in exhibition stands or truss display systems,3D printing
•Body made of brass or Al with tapped hold to mount on any surface
•Can hold anything within stipulated load at any angle
•Allows the steel ball to rotate a full 360 degrees on a 180-degree axis
Quantity:
Inquire

Magnetic Universal Joint  is a holding device which has flexible joints with a diameter 8mm-25mm steel ball held by powerful rare earth magnet contained in the magnet brass or Al cylinder. And the magnetic universal ball joint allow the steel ball a full 360°rotation on a 180°axis line. This caused even if the ball comes off from the magnet cylinder, no damage can be made and the joints can work just as well as before when reset.

Application:
Due to the use of high-energy rare-earth magnets, magnetic ball joints have a very strong holding force. The resulting displacement force of the ball is strong enough to hold the optical systems of cameras, lighting fixtures or laser units without requiring a mechanical fixation.
Examples:
Since the magnetic ball joint is electro-conductive, rapidrelease and rotatable electrical connections can be made with such a system. This is of advantage, for instance, in modern low-voltage lamps. Rapid-release connections for test fixtures are also possible. In lifting linkages a predetermined breaking point can be provided, or sideways movements compensated. Due to the use of high-energy rare-earth magnets, magnetic ball joints types KD… have a very strong holding force. The resulting displacement force of the ball is strong enough to hold the optical systems of cameras, lighting fixtures or laser units without requiring a mechanical fixation.

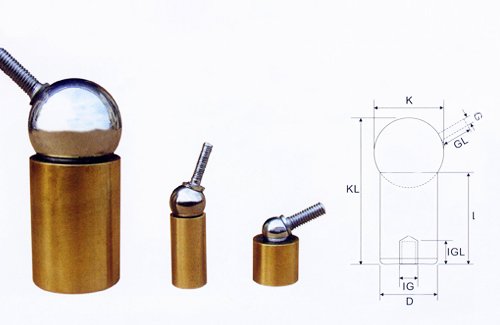

 There are many models of the magnetic ball joints with threaded, showed in below diagram.
ndfeb universal joint5
Model K Φ
(Ball)		 D Φ
(Magnet)		 KL L G GL IG IGL Holding Force
K8 8.0 12.5 18.0 12.0 – – – – 10.0N/1.0kg
KD10 10.0 10.0 28.0 20.0 M3 12.0 M3 5.0 20.0N/2.0kg
KD12 12.0 10.0 30.5 20.0 M3 12.0 M3 5.0 20.0N/2.0kg
KD13 13.0 13.0 31.0 20.0 M4 12.0 M4 6.0 50.0N/5.0kg
KD18 18.0 13.0 36.0 20.0 M4 12.0 M4 6.0 50.0N/5.0kg
KD16 16.0 16.0 34.0 20.0 M4 12.0 M4 6.0 70.0N/7.0kg
KD25 25.0 20.0 47.0 25.0 M5 16.0 M5 5.0 150.0N/15.0kg
KD25-2 25.0 25.0 58.0 35.0 M5 16.0 M5 7.0 200.0N/20.0kg
K8 Ball with inner thread,M 4/3,5 mm deep without thread IG on the rear, Customized Cylinder type, threaded rod length, coating type for steel ball, holding force etc are acceptable.
