DunBen
Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of 550 degrees C. The Alnico horseshoe magnets are supplied in natural (uncoated / unpainted) and red paint finishes.
The alnico horseshoe magnet is a classic alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet. they are all Alnico horseshoe magnets but have different sizes and performances.All of these horseshoes magnets are Cast Alnico, and usually go with a Zinc plated steel keeper.

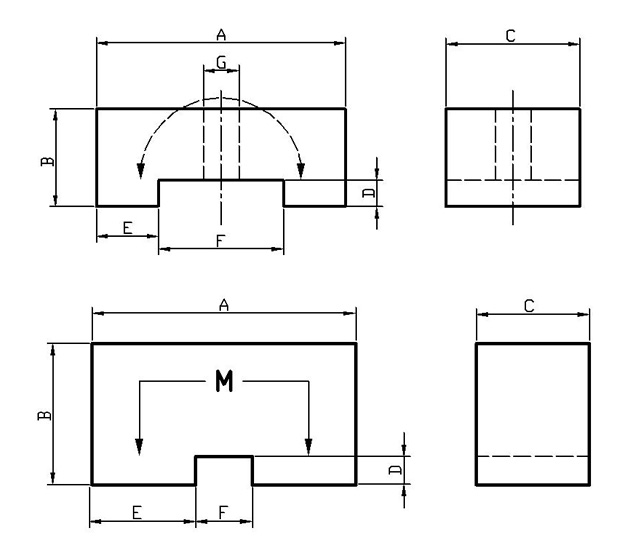

PartNo | A | B | C | D | E | F | Weight | Min Pull(N) |
HS6501 | 12.7 | 7.92 | 4.75 | 3.48 | 4 | 4.72 | 0.003kg | 2 |
HS6502 | 19.05 | 12.7 | 6.35 | 5.45 | 6.35 | 6.35 | 0.0095kg | 9 |
HS5903 | 25.4 | 15.875 | 7.92 | 4.75 | 8 | 9.525 | 0.020kg | 27 |
HS5904 | 31.75 | 19.05 | 10.3 | 6.35 | 10.33 | 11 | 0.040kg | 44 |
HS5905 | 38.1 | 22.23 | 12.7 | 7.62 | 12.7 | 12.7 | 0.0695kg | 53 |
HS5906 | 44.45 | 26.97 | 19.05 | 12.75 | 12.7 | 19.05 | 0.136kg | 112 |
