NdFeB Bi-pole Magnets with internal thread, Bi-pole Neodymium Deep Pot Holding Magnets , Bar rod magnets Neodymium-iron-boron with brass body , magnets with cylindrical pot, cylindrical NdFeB magnet

NdFeB Bi-pole Magnets Brass Body With Internal Thread
Configuration: Bi-pole deep pot holding
Material: rare earth neodymium
Brass pot with mild steel pole pieces
N35 grade nickel plated magnet material
80°C max operating temperature
Ideal for clamping applications
Quantity:
Inquire

  • DunBen

NdFeB Bi-pole Magnets With Internal Thread And Brass Body
   Pot Magnets are  Magnetic Holding Assemblies for  use where a very strong surface holding magnet is required. The magnet sits inside a steel case which provides extra strong magnetism on one face only, provides a hole for fixing and also protects the magnet from damage.

   Neodymium pot magnets combine the power of a sintered neodymium magnet Brass pot with the durability of a mild steel shell  and inner thread . These NdFeB Permanent magnets are deep and cylindrical. The magnets are placed centrally in a brass body  with fitting tolerance h6 and internal thread . The basic principle of the holding or pot magnet is to direct and concentrate the flux from both magnetic poles to one active face. This is usually achieved with steel pole pieces or a brass-backing cup. They offer  highly  coerc ive, exceptional performance and is stronger than any other permanent magnet material, especially through larger air gaps. The magnets have a tapped hole in the back for mounting and are supplied with a removable steel hook.
     Ultra high performance   Neodymium Iron Boraon magnets  can lift up to 1,000 times their own weight. They can be bonded in place using structural adhesive and offer incredible performance.  They are usually used for holding    or gripping  and lifting.

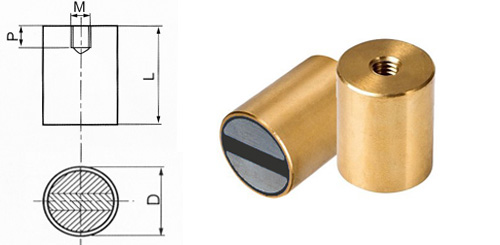

pnd2

Code Shell Dimensions(mm) Pull(N) Weight(g)
D L M p
PND3-01 Brass 6 20 3 5 10 4.5
PND3-02 Brass 8 20 3 5 25 8
PND3-03 Brass 10 20 4 7 45 12
PND3-04 Brass 13 20 4 7 70 20
PND3-05 Brass 16 20 4 7 150 32
PND3-06 Brass 20 25 6 9 280 60
PND3-07 Brass 25 35 6 9 490 140
PND3-08 Brass 32 40 8 12 700 265
