NdFeB Deep Pot Magnets, Holding Bi-pole Magnets, Bar magnets Neodymium-iron-boron with brass body , NdFeB Bi-Pole / Twin-Pole Deep Blind Ended Pot Magnet

NdFeB Deep Pot Magnet With Brass Body
Configuration: Bi-pole deep pot holding
Material: rare earth neodymium
Brass pot with mild steel pole pieces
N35 grade nickel plated magnet material
80°C max operating temperature
Ideal for clamping applications
Quantity:
Inquire

  • DunBen

NdFeB Twin - Pole Deep Blind Ended Pot Magnet
   Pot Magnets are  Magnetic Holding Assemblies for  use where a very strong surface holding magnet is required. The magnet sits inside a steel case which provides extra strong magnetism on one face only, provides a hole for fixing and also protects the magnet from damage.

   Neodymium pot magnets combine the power of a sintered neodymium magnet Brass pot with the durability of a mild steel shell. These NdFeB Permanent magnets are deep and cylindrical. The magnets are placed centrally in a brass body. The basic principle of the holding or pot magnet is to direct and concentrate the flux from both magnetic poles to one active face. This is usually achieved with steel pole pieces or a brass-backing cup. They offer  highly  coerc ive, exceptional performance and is stronger than any other permanent magnet material, especially through larger air gaps.
   Although they have many applications, they are usually used for holding    or gripping  and lifting.
PND1
Code Shell Dimensions(mm) Pull(N)
D H h
PND1-01 Brass 6 20 10 10
PND1-02 Brass 8 20 10 25
PND1-03 Brass 10 20 8 45
PND1-04 Brass 13 20 6 70
PND1-05 Brass 16 20 2 150
PND1-06 Brass 20 25 6 280
PND1-07 Brass 25 35 7 450
PND1-08 Brass 32 40 5 700

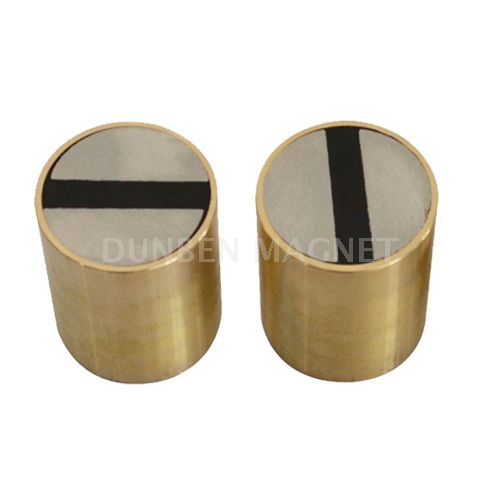

ndfeb pot magnet with brass body2
