Neodymium Mitre Magnet

Product Name:neodymium mitre magnet
Grade: N42
Size: 10 diameter x30mm thick x45 degree mitred end
Plating: Nickel (Ni+Cu+Ni)
Magnetizing Direction: north pole is on the mitred face with the south pole on the flat face
  • dunben

Mitred magnets are commonly used in magnetic electric motors such as those used in electric or hybrid motor vehicles and in household appliances such as washing machines. These strong magnets have an anisotropic alignment and a maximum operating temperature of 80 degrees Celsius.

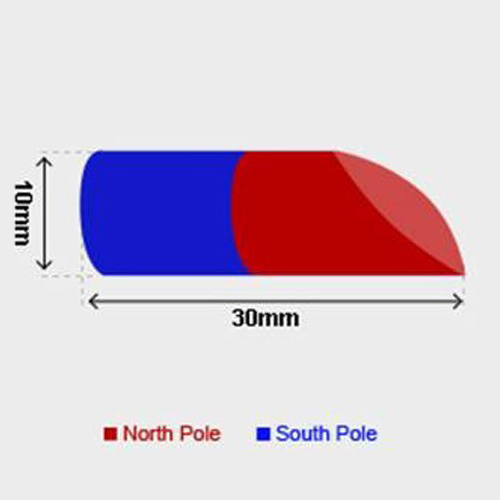

ndfeb irregular -2
Neodymium Magnet Product Description:

Sintered NdfeB Magnets have Characterristic of high remanence,high Coercive force,high Energy Product.It is eaily formed into various sizes which makes it suitable for servo motors,disk brushless motors, stepping motors,IT industry,MRI,loudspeaker,medical instrements,etc.

1. Meterial:   NdFeB,Neodymium,

2. Technology:Utilizes new Sintered NdFeB magnet techniques and equipment such as strip casting, HDDR technology.

3. Magnetic properties: Remanence,Max.Energy Product,High Coercive Force, the max working temp is up to 200℃;

4. Grades:N33-N52, 30M-50M, 35H-48H, 33SH-45SH, 30UH-40UH and 30EH-35EH;

5. Shapes and sizes: Disc,ring,block,segment,and irregular shape.Our factory can also manufacture various sizes of other NdFeB magnets, according to the customer's specification.

6. Coatings:coat with Ni, Zn, Phosphating, epoxy and so on;
ndfeb coating.jpg
