Neodymium Mounting Round Base Shallow Pot Magnet with a countersunk hole,Powerful neodymium cup magnet

Neodymium Mounting Round Base Pot Magnet with a countersunk hole
1.Size: As per the table. Customer tailored design are available.
2.Material: Neodymium magnets + Steel cup
3.Coating: Nickel or Ni,Zn,Cr,Rubber as per customers requirement.
4.Optimum, stable performance
5.Superior holding and pull strength
Quantity:
Inquire

  • DunBen

NdFeB Mounting Round Base Shallow Pot Magnet with a countersunk hole
NdFeB round base pot magnet is made of neodymium counter-bored ring magnet ,it consists of a sintered alloy of neodymium and the elements boron and iron. this alloy has highly coercive, magnetic remanence and energy and is stronger than any other permanent magnet material.

The NdFeB Pot Magnet with Countersunk Mounting  is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung  from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy! It  is easily fixed in place with a M4 or M5 countersunk screw. It has a maximum pull of between25N and 510N.

Application:

Hanging signs and lights
Fastening antennas
Holding tarps
Making retrieval tools
Holding through non-ferrous materials
Use for fastening or holding steel doors
Insertion into molds
Insertion into fixtures
For car roof signs

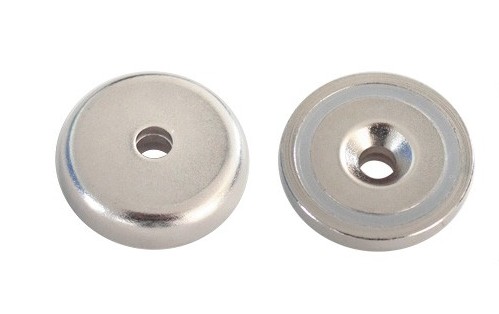

ndfeb pot magnet21
Custom sized Pot Magnets can be made upon request.

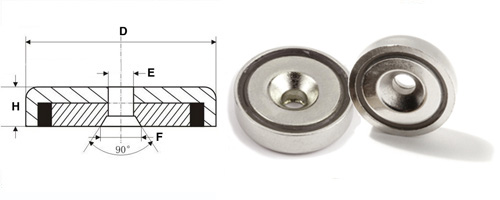

pnd14
Code Shell Dimensions(mm) Weight(g) Pull(N)
D H E F
PND8-01 Fe37 10 4.5 3 6 3.5 25
PND8-02 Fe37 13 4.5 3 6 4.8 45
PND8-03 Fe37 16 4.5 3.5 6.6 5.7 75
PND8-04 Fe37 20 6 4.5 9 12.5 105
PND8-05 Fe37 25 7 4.5 9 24 160
PND8-06 Fe37 32 7 5.5 11 39 310
PND8-07 Fe37 36 8 5.5 11 50 340
PND8-08 Fe37 40 8 5.5 11 75 510
PND8-09 Fe37 42 8.8 6.5 12 77 600
PND8-10 Fe37 45 8.8 8.5 20 90 660
PND8-11 Fe37 48 10.8 8.5 19 120 780
PND8-12 Fe37 50 10.8 8.5 19 135 870
PND8-13 Fe37 55 12 8.5 19 192 1000
PND8-14 Fe37 60 15 8.5 19 243 1120
PND8-15 Fe37 65 15 8.5 19 338 1275
PND8-16 Fe37 70 17 10.5 21 440 1450
PND8-17 Fe37 75 17.8 10.5 19 480 1580
PND8-18 Fe37 80 19 10.5 21 655 1880

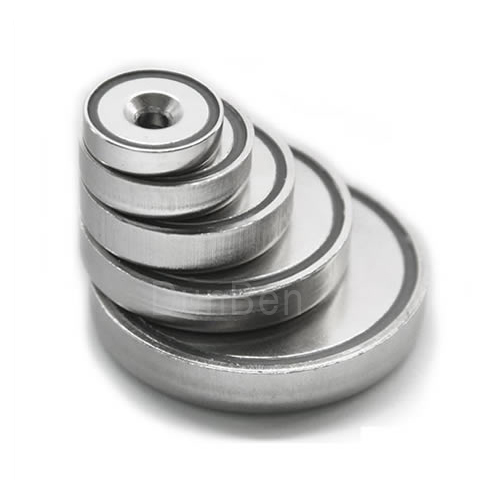

ndfeb pot magnet29
