1. Cast Alnico magnet, block magnet with hole.
2. Grade of Alnico magnet: Alnico5-7, Alnico5DG, LNG44-52

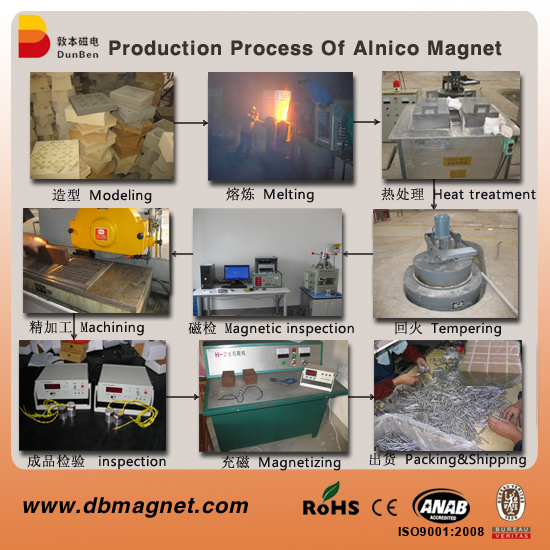

3. Production chart of cast alnico magnet: raw material---mixing---modeling---melting---heat treatment---testing---cutting and grinding---inspection---packing---shipping---after- sale service.
4. Characteristics of Alnico magnet: compact crystal, high intensity, good chemistry stability, strong anti-corrosion, even elements, excellent magnetic performance, excellent temperature stability, highest usage temperature reach 550 °c.
5. Application of Alnico magnet: electro magnetic chucks.
6. some sizes about base alnico magnet:
Size Specifications:
Grade | Length (mm) | Width(mm) | Height (mm) | Holes(mm) |
LNG40 | 42 | 42 | 20 | 6.5 |
45 | 45 | 20 | 7 | |
45 | 45 | 31 | 8.5 | |
45 | 20 | 15 | 7 | |
50 | 20 | 20 | 7 | |
63 | 63 | 25 | 9 | |
90 | 90 | 35 | 11 | |
40 | 20 | 20 | 7 | |
LNG44 | 68 | 68 | 20 | 20 |
LNG52 | 69 | 25 | 25 | 15 |
