Powerful Alnico Button Magnets, AlNiCo round magnet with groove and bore, red coated

Material:Cast alnico magnet
Grade: alnico 5
Size:customized
Magnetism direction: Horseshoe
Tolerance: +/-0.05 mm
Application: welding, wood cutting, sign making
Quantity:
  • DunBen
Red paint powerful alnico button magnet are cylindrical type holding magnets. The north and south poles are on the same plane and separated by a slot gap. They have convenient mounting holes. They are good for use as work holding devices for welding, wood cutting, sign making and other applications, or for reed switch operation. Each button magnet includes a metal keeper for storage and to help retain magnetic strength.  Alnico button magnets can be plated with red.

Features:

·Comes in a variety of forms
·Designed with Alnico magnet
·Stable magnetism stable even in high temperatures
·High performance, coercive force and maximum energy


Product Name Red Powful AlNiCo Button magnet
Grade AlNiCo 2/3/5/8/9
Material Cast AlNiCo magnet
Certification ISO/TS16949:2009
Size Customized Magnet Size
Magnetism direction Customzied Specific Requirements
Tolerance +/-0.05mm
Button draw3
* Dimension(mm)
PartNo A B C D E F Weight Min Pull(N) Painted
HS5801 12.7 9.5 4.7 4 7 4 0.01kg 7 Red
HS5802 19.05 12.7 6.4 4.8 8.7 5.6 0.028kg 19 Red
HS5803 25.4 15.87 8 4.8 8.7 5.6 0.056kg 29 Red
HS5804 31.75 25.4 12.7 7.4 10 7.9 0.113kg 66 Red

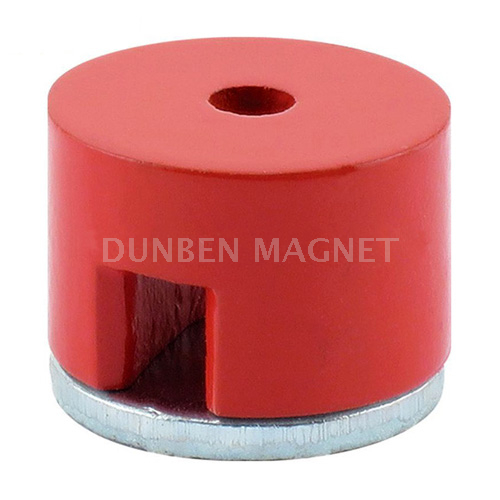

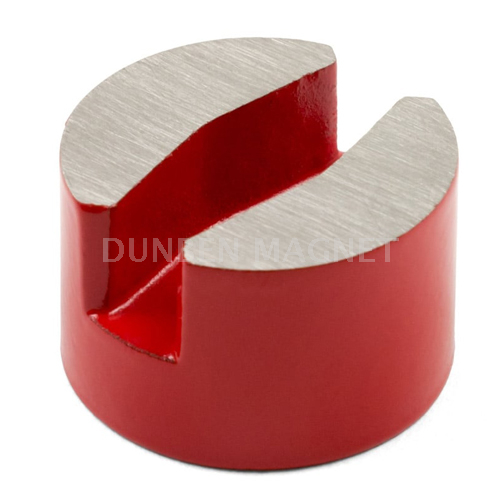

button magnet3 button magnet 4
