Powerful Manual Permanent Magnetic Lifter/crane ,Heavy Duty Magnetic Lifter, Handling Permanent Magnet Lifter

Neodymium Magnetic Powered System
Compact and lightweight
Apt for Flat & round material
High lift to its weight ratio
Easy operation facilitated with On/Off system
It improves plant safety as there is no direct contact with workers
Huge & heavy work pieces can be moved and handled safely, easily by a single operator
Quantity:
  • DunBen

Permanent Magnetic Lifter
In the permanent magnetic lifter, there is a magetic system formed by Neodymium magnetic materials with strong magnetism. It can control magnetic switch by rotating the handle. It has the characteristics of using no electricity, small volume, light weight, great holding force, easy and safe operation, constant magnetic. Permanent Magnetic Lifter has strong magnetic path produced by Neodymium magnetic materials.The magnetic switch is controlled by rotating the handle. Permanent magnetic lifter is a new concept product for lifting and handling steel plates, pipes, beams and cylindrical work pieces of ferromagnetic materials. On and off of the magnetic path is controlled by turning the manual handle. They are been used to lift and transport the steel and iron for factories, docks, ware houses, transportation etc.  According to the different requirements of customers, we have designed and produced multiple series of lifters.

Features:
1. Available in the lifting capacities of 100kg- 6000kg.

2. 3.5 times for safety factor.

3. Self-locking safety block prevents accidental deactivation.

4. No electrical power required.

5. NdFeB material with high density and strong magnetism.

6.  Multifunction and severl magnet lifters can use together to holding the loads.

Operation:

1.Clean the surface of the load, place the lifter in the center of the load and make sure the poles are in full contact with the load. Make sure the weight of the load is no more than the rated value of the lifter.

2.Pull up the handle and rotate the handle to the “ON” position, then release the handle. The security key on the handle will automatically lock the handle.

3.Set the load on the ground or support. Ensure the load is firmly supported and completely in place before releasing the load.

4.Pull up the handle and rotate completely to the “OFF” position. The lifter is now in the neutral condition, can be taken away from the load.

Maintance:

1.Please check the easy wearing parts frequently, such as the locking block, handle and loop pin. If they are worn 10% off,     please change them.

2.Please stay the “OFF” condition when not working.

3.Keep the pole surface clean. And treat some oil on the surface of the pole after use to protect it from rust.

4.Ensure the store environment dry, and don’t put them directly on the floor.

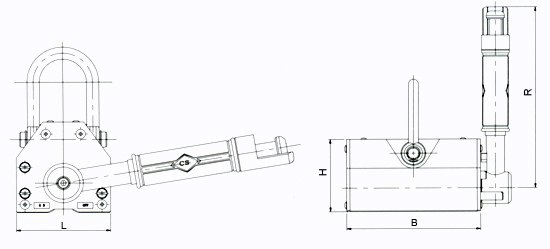

magnetic lifterA-chart2

Part No. Rated lifting strength(Kgf) Cylindrical lifting strength(Kgf) Max. pull-off strength(Kgf) L
(mm)
W
(mm)
H
(mm)
I
(mm)
Operation temperature(°C) Dead weight(Kg)
PML100A 100 50 350 64 92 67 107 <80 3.0
PML300A 300 150 1050 92 162 91 155 <80 7.5
PML600A 600 300 2100 122 233 118 196 <80 23.0
PML1000A 1000 500 3500 179 268 164 255 <80 55.5
PML2000A 2000 1000 7000 234 378 212 426 <80 125.0
PML3000A 3000 1500 10500 310 497 252 505 <80 220.0
PML6000A 6000 3000 21000 442 621 210 548 <80 440.0
