Powerful Neodymium Pot Magnet with External Thread,Powerful Magnetic Holding Pot Magnet ,Holding Power Neodymium Pot Magnet

Powerful NdFeB Pot Magnet With External Male Thread
·Material: Housing steel and Magnetic core sintered neodymium magnet with external male Thread
·Stable performance
·Many different sizes and adhesive forces
·Painted: NiCuNi coated
·Temperature range: max. 80°C.
Quantity:
Inquire

  • DunBen

Holding Power Neodymium Pot Magnet External Threaded
   The NdFeB pot magnet is made of ndfeb magnet,it consists of a sintered alloy of neodymium and the elements boron and iron. These magnets are pressed or glued into the receiving holes.  This alloy has magnetic remanence, h ighly coercive,  and energy and is stronger than any other permanent magnet material. Neodymium magnets come in a large number of grades and are easily formed into various sizes.

   The NdFeB Pot Magnet with external threaded Mounting is also known to many as a magnetic cup holder or magnetic cup assembly. It can be screwed into M4, M5 and M6 tapped holes.It offers maximum clamping forces from 30N up to 300N.
. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.
We also can produce other types and sizes of cup magnets upon request as follows:

● NdFeB Flat Pot Magnet
●  NdFeB Deep Pot Magnet
● NdFeB Pot Magnet with Female Threaded (Internal Thread)
● NdFeB Pot Magnet with Eyelet
● NdFeB Pot Magnet with Hook
● NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)
● NdFeB Pot Magnet with Through Hole Mounting

   They are commonly used for window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.

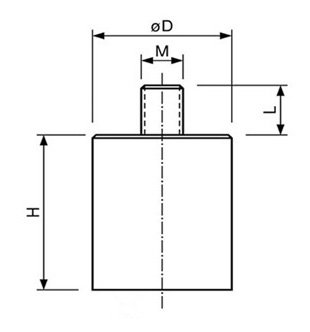

pnd7
Model

Size(mm)
Power Force(kg)
      H+L
D
H
M
PND10-06
11.4
6
6
3
0.5
PND10-10
12.5
10
4.5
4
2.5
PND10-12
12.5
12
4.5
3
3.2
PND10-13
12.5
13
4.5
5
6
PND10-15
17
15
5
4
5
PND10-16B
12.5
16
4.5
6
9.5
  PND10-16A
12
16 4 6 7
  PND10-16C 12 16 4 6 4.5
  PND10-16D
13
16 5 4 8
  PND10-16E 13.5 16 5 4 8
  PND10-16F 14 16 5.2 4 5.5
  PND10-19 14 19 6.35 6 9
  PND10-20A 14 20 7 5 14
  PND10-20B 16 20 6 6 14
  PND10-20C 15 20 7 4 9
  PND10-20E 21 20 6 4 14
  PND10-20F 15 20 7 4 13
  PND10-20G 15 20 7 8 13
  PND10-22 12.5 22 6 4 4.5
  PND10-22A 19.5 22 6.5 5 15
  PND10-25 17 25 7 6 20
  PND10-25C 16.5 25 8 5 25
  PND10-32 17 32 7 6 35
  PND10-32C 14 32 7 6 16
  PND10-36 18 36 8 6 41
  PND10-42 20 42 9 8 68
  PND10-42A 25 42 11 8 68
  PND10-60 30 60 15 8 113
