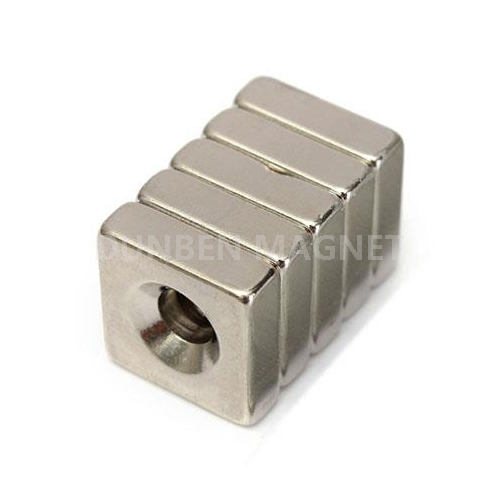

Powerful Suqare Rare Earth Neodymium Magnets 15x15mm with 5mm countersunk Hole

Shape: Square/Cube
Material: NdFeB
Plating: Nickel
Size: 15mm*15mm+5mm Hole
Grade: N50
Magnetized Poles: on the large flat sides
Quantity:
  • DunBen

Neodymium square magnet are the world's strongest magnets, compared with Samarium cobalt, ferrite magnets, and alnico mangets.

Dunben Magnets offers the highest quality Neodymium magnets with consistent performance and lowest price

Our Neodymium square magnet are designed and manufactured to meet with quality standards using the latest technology.
Product information

Escription:
Powerful Suqare Rare Earth Neodymium Magnets With Countersunk Hole


Material: Neodymium-Iron-Boron
Product Name: NdFeB Magnets,Sintered Rare Earth Magnets,Neodymium-Iron-Boron Magnets,Permanent Magnets



Features: The most powerful permanent magnet, offers a great return for cost & performance, have the highest field/surface strength(Br), high coercivity(Hc), can be easily formed into various shapes and sizes. Be reactive with moisture and oxygen,usualy supplied by plating (Nickel, Zinc, Passivatation, Epoxy coating, etc.).
Working Temperature: Grade Temperature
N28-N48 80ºC
N50-N55 60ºC
30M-52M 100ºC
28H-50H 120ºC
28SH-48SH 150ºC
28UH-42UH 180ºC
28EH-38EH 200ºC
28AH-33AH 200ºC
Magnet Shape:  Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available


Applications: Sensors,motors,filter automobiles,magnetics holders,loudspeakers,wind generators, medical equipments, etc.
ndfeb characteristics.pdf

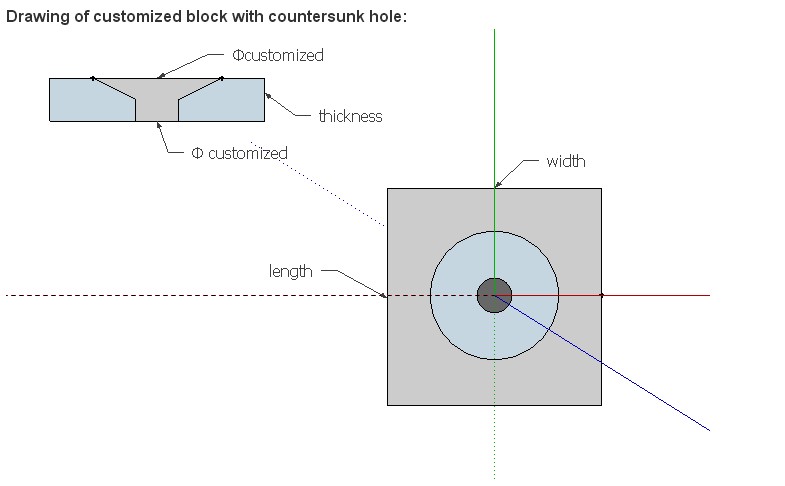

drawing of nedoymium magnet with hole

ndfeb coating.jpg flow2
