Powerful black ferrite ceramic round base shallow pot magnet,Ferrite Holding Magnet,Ferrite Pot Magnet with borehole,Hard Ferrite Eyebolt Ring Magnet

Black ferrite ceramic round base shallow pot magnet:
Material: ferrite(ceramic) magnet and steel
Coating: Black painted
Properties: Very good resistance to corrosion
Quantity:
Inquire

  • DunBen

Powerful black ferrite ceramic round base pot magnet i s made of ferrite(ceramic) magnet,it as a material has a very good resistance to corrosion and has a high maximum operating temperature making it a very versatile magnetic material. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. Ferrite Shallow Pot Magnets come in avariety of forms such as with hook or eyebolt attachments.

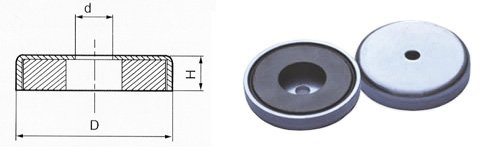

pfm1
Code Shell Dimensions(mm) Coating Pull(N) Weight(g)
D H d
PFM1-01 Fe37 36 7 4.8 Ni 72 50
PFM1-02 Fe37 45 10.3 4 Ni 70 70
PFM1-03 Fe37 50 10.5 8.5 Zn 180 90
PFM1-04 Fe37 55 11 4.5 Zn 180 110
PFM1-05 Fe37 63 14 6.5 Zn 290 195
PFM1-06 Fe37 71 15.3 10.5 Zn 400 280
PFM1-07 Fe37 80 18 6.5 Zn 540 480
PFM1-08 Fe37 100 22 10.5 Cr 680 820
