Powerful ferrite ceramic pot magnet with internal thread,ceramic round base magnet,Hard Ferrite Eyebolt Ring Magnet

ferrite ceramic pot magnet with internal thread :
Material: ferrite(ceramic) magnet and steel
Coating: Ni painted
Application: holding application
Quantity:
Inquire

  • DunBen

Powerful ferrite ceramic round base pot magnet with internal thread i s made of ferrite(ceramic) magnet,it as a material has a very good resistance to corrosion and has a high maximum operating temperature making it a very versatile magnetic material. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.This kind of magnet is in a steel pot, thereby the magnetic force only works in one way, that means on the closed side of this pot magnet the magnetic force is very small. Ferrite Shallow Pot Magnets come in avariety of forms such as with hook or eyebolt attachments.

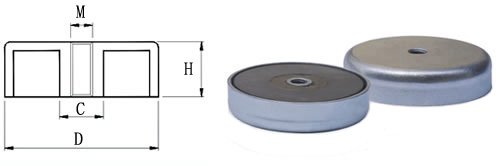

fpt2

Code Shell Dimensions(mm) Coating Pull(N)
D H M C
PFM3-01 Fe37 32 7 5.2 9 Ni 75
PFM3-02 Fe37 40 8 4 5.2 Zn 90
PFM3-03 Fe37 50 10 6 12 Zn 170
PFM3-04 Fe37 63 14 8 20 Ni 350
PFM3-05 Fe37 76 11.6 6.2 25 Ni 400
PFM3-06 Fe37 80 18 8 15 Zn 550
PFM3-07 Fe37 80 18 10 15 Ni 550
PFM3-08 Fe37 90 18 10 32 Ni 420
