Powful NdFeB Pot Magnet with Male Threaded (External Thread),Powerful Magnetic Holding Pot Magnet ,Holding Power Neodymium Cup Magnet w/ Threaded, Mounting Holding Round Base Magnet

Powful NdFeB Pot Magnet /Cup Magnet With External Male Thread
·Material: Housing steel and Magnetic core sintered neodymium magnet with external male Thread
·Stable performance
·Many different sizes and adhesive forces
·Painted: Zinc (Zn) coated
·Temperature range: max. 80°C.
Quantity:
  • DunBen

Holding Power Neodymium Cup Magnet External or w/ Threaded
   The NdFeB cup magnet is made of ndfeb magnet,it consists of a sintered alloy of neodymium and the elements boron and iron. These magnets are pressed or glued into the receiving holes This alloy has magnetic remanence, h ighly coercive,  and energy and is stronger than any other permanent magnet material. Neodymium magnets come in a large number of grades and are easily formed into various sizes.

   The NdFeB Cup Magnet with external threaded Mounting is also known to many as a magnetic cup holder or magnetic cup assembly. It can be screwed into M4, M5 and M6 tapped holes.It offers maximum clamping forces from 30N up to 300N.

. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.
We also can produce other types and sizes of cup magnets upon request as follows:

 NdFeB Flat Pot Magnet
●  NdFeB Deep Pot Magnet
● NdFeB Pot Magnet with Female Threaded (Internal Thread)
● NdFeB Pot Magnet with Eyelet
● NdFeB Pot Magnet with Hook
● NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)
● NdFeB Pot Magnet with Through Hole Mounting

   They are commonly used for window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.

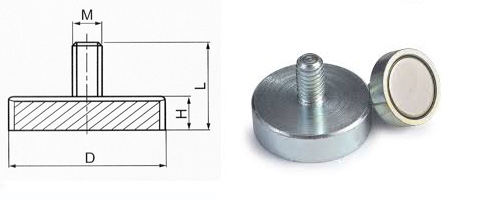

PND5-2
Code Shell Dimensions(mm) Coating Pull(N)
D H L M
PND5-01 Fe37 10 4.5 12.5 M4 Zn 30
PND5-02 Fe37 13 4.5 12.5 M5 Zn 60
PND5-03 Fe37 16 4.5 12.5 M6 Zn 100
PND5-04 Fe37 20 6 16 M6 Zn 150
PND5-05 Fe37 25 7 17 M6 Zn 250
PND5-06 Fe37 32 7 17 M6 Zn 400
PND5-07 Fe37 35 7 19 M6 Zn 300
