Red Green painted Alnico Educational Magnets , U Shape Cast AlNiCo Magnets

Material:Cast Alnico magnet
Shape:U Shape or Horseshoes
Painted: Red and Green or White
Application: Teaching and education
some with keeper
Quantity:
Educational Alnico magnets are widely used in teaching and playing by children. Generally, Hard Ferrite or Cast AlNiCo will be used in the Educational magnets, due to lower cost and good property. Many shapes, sizes and colors are available for clients' choice.  We usually paint them in red or green, or we combine them with other material such as metal, plastic. In the meantime, we obey international safe standard. It is no affection to Children's health.
We manufacture Educational magnets based on customers' requirement.


Educational Alnico magnets size  specifications
PartNo Dimensions(mm) Power force Weight
EMU01 66*70*20*20 120 580g
EMU02 85*48*15*6 58 230g
EMU03 115*43.5*20*8 82 560g
EMU04 125*56*30*12 140 1220g

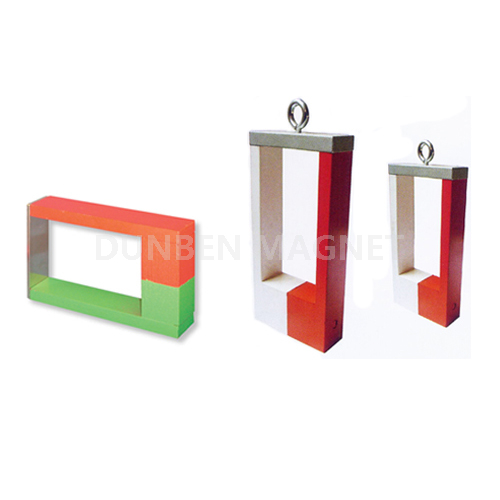

education magnet32
Typical Magnetic Properties

Grade MMPA Equivalent Br Hcb Hcj (BH)max Remark
mT Gs kA/m Oe kA/m Oe kJ/m3 MGOe
LN10 Alnico3 600 6000 40 500 43 540 10 1.20 Isotropic
LNG13 Alnico2 680 6800 48 600 51 640 13 1.60
LNGT18 Alnico8 580 5800 90 1130 92 1160 18 2.20
LNG37 Alnico5 1200 12000 48 600 49 610 37 4.65 Anisotropic
LNG40 1250 12500 48 600 49 610 40 5.00
LNG44 1250 12500 52 650 53 660 44 5.50
LNG52 Alnico5DG 1300 13000 56 700 57 710 52 6.50
LNG60 Alnico5-7 1350 13500 59 740 60 750 60 7.50
LNGT28 Alnico6 1000 10000 58 720 59 740 28 3.50
LNGT36J Alnico8HC 700 7000 140 1750 148 1850 36 4.50
LNGT38 Alnico8 800 8000 110 1380 112 1400 38 4.75
LNGT44 880 8800 120 1500 122 1530 44 5.50
LNGT60 Alnico9 900 9000 110 1380 112 1400 60 7.50
LNGT72 1050 10500 112 1400 114 1430 72 9.00
