Red Painted Cast Alnico 5 Horseshoe Magnet, 500°C maximium Powful Alnico Pocket Magnets With Keeper

U-Magnet Horeshoes Alnico magnet
Quantity:
Inquire

  • DunBen

Alnico horseshoe magnets and Alnico Holding Magnet Assemblies provide a compact, high power magnetic source, and are used for traction, lifting, sorting, clamping and retrieval. They are supplied with ground pole faces, painted and with metal keepers for storage and to help retain magnetic strength.

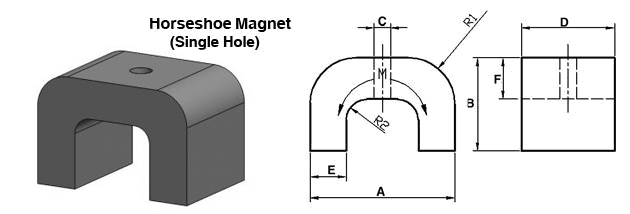

alnico horseshoe50
PartNo A B C D E F R1 R2 Weight Min Pull(N) Painted
HS5601 30 20 5 20 7.5 9 9 4 0.06kg 44 Red/yellow
HS5602 40 25 5 25 10 11.5 12 5 0.12kg 88 Red/yellow
HS5603 41.28 21.41 6.35 28.58 10.3 11.5 12.7 4.75 0.129kg 98 Blue
HS5604 45 30 5 30 11 13 13 6 0.18kg 116 Red/yellow

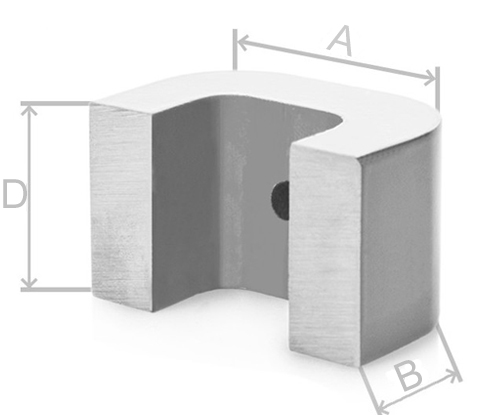

alnico horseshoe48-2
