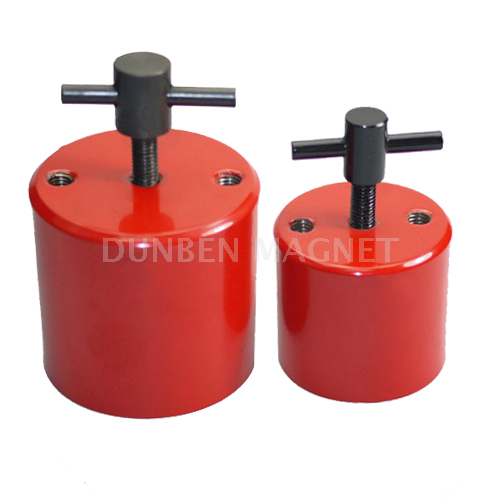

Red Painted Strong Powerful Alnico Hook Mounting Pot magnet , Magnetic Hook, Magnetic Holdfast

Strong Powerful Alnico Hook Mounting Pot magnet :
·Comes in a variety of forms
·Designed with Alnico magnet
·Stable magnetism stable even in high temperatures
·High performance, coercive force and maximum energy

Quantity:
  • DunBen
Red Painted Strong Powerful Alnico Hook Mounting Pot magnet,

Alnico hold mounting pot magnets are used in the area of gauge stands, lifting magnets, dial stands, work piece securing and jigs & fixtures. These pot magnets are installed aluminum, cobalt, nickel, iron and small amounts of other metals. It keeps the holding force concentrated onto the holding area and magnetism is very stable in Alnico magnets even in high-temperature technical applications.Alnico Magnetic Holdfasts are easily demagnetized and remagnetized. Alnico magnets can be plated with a variety of metals or given a coating that is usually red. They are also non-corrosive.

Product Features:
A deep cylindrical concentric magnet in a steel pot
Primarily for gripping applications
with hold mounting,
Holdfasts
Supplied with keepers
Material – Alnico 5
Temperature Rating 500 deg.C.

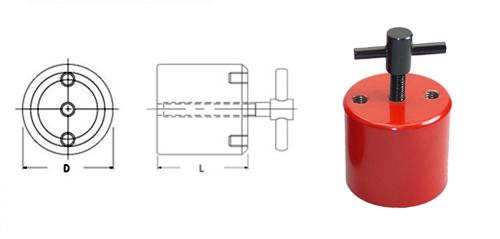

pal6
Code Shell Dimensions(mm) Weitht(g) Pull(N)
D L
PAL6-01 Fe37 44.5 44.5 0.57 190
PAL6-02 Fe37 55 50 0.93 390
PAL6-03 Fe37 70 65 2 835
PAL6-04 Fe37 100 75 4.7 1690

magnetic hook2alnico pot magnet9-1
