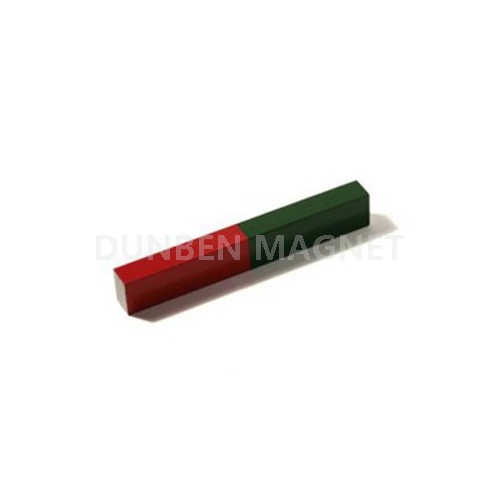

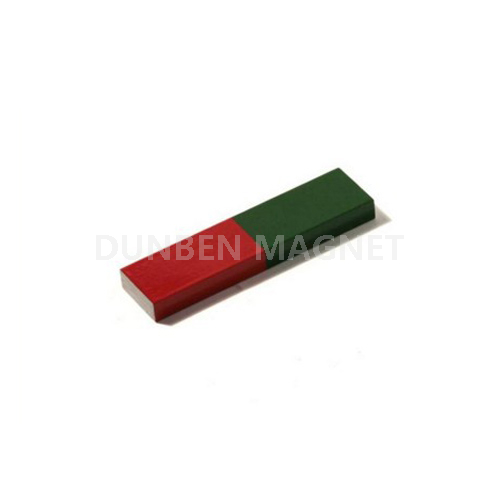

Red painted magnets School Education Permanent AlNiCo Magnet

Material:Cast alnico magnet
Grade: alnico2,alnico3,alnico5
Size:customized
Magnetism direction: Customzied Specific Requirements
Tolerance: +/-0.05mm
Application: education
Painted: Green and Red

Quantity:
  • DunBen
 AlNiCo magnet
AlNiCo magnet is hard and brittle. Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.

Competitive Advantages

1. Dimensional Stability

2. Comparatively high magnetic properties

3. Excellent temperature stability

4. Strong corrosion resistance

5. The maximum working temperature is up to 550°c

6. Excellent capacity

7. High density and magnetic properties

8.Cast AlNiCo magnets can be produced in relatively complex shapes


Product Name AlNiCo magnet / alnico block magnet / alnico magnets for educations
Grade AlNiCo 2/3/5
Material Cast AlNiCo magnet
Certification ISO/TS16949:2009
Size Customized Magnet Size
Magnetism direction Customzied Specific Requirements
Tolerance +/-0.05mm
Density 7.3 g/cm3
Shape blocks
Surface Treatment Red/Green/Blue/White/Yellow Eco-Friendly Painting and Some are keeperd
Application Science Research,Teaching Aids,Security systems,Industrial Magnet,Sensor,motor,loudspeaker

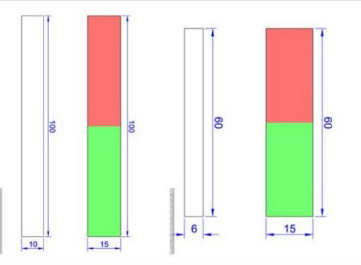

education bar draw
Typical dimensions of Rectangular Bar
Length(mm) Width(mm) Height(mm)
50 6 6
50 15 10
60 15 6
72 12 6
75 10 6
75 15 10
90 20 8
100 10 10
100 15 10
150 9 9
150 10 6
