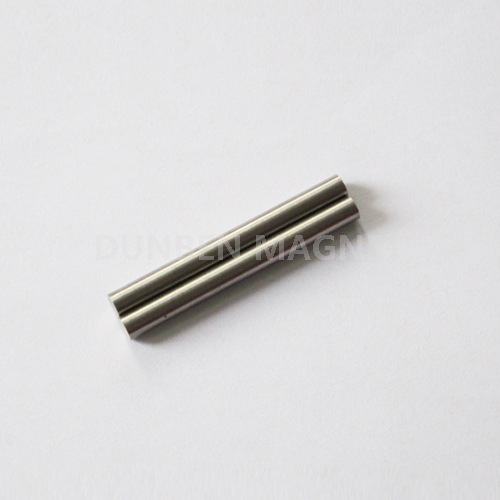

Round Alnico Rod Magnets Super Strong For Bell Ringers

Material:Cast alnico magnet
Grade: alnico3,alnico5,alnico8
Size:customized
Magnetism direction: Customzied Specific Requirements
Tolerance: +/-0.1mm
Application: Bell Ringers
Quantity:
  • DunBen
Alnico magnets are made primarily from aluminum, nickel, cobalt, copper, iron and sometimes titanium. Among all the available magnetic materials, they have high magnetic flux density, resistance to corrosion and excellent temperature stability, the maximum working temperature up to 600℃. Cast Alnico can be made into intricate and complex shapes, which is not possible with other magnetic materials.


Competitive Advantage:



1. High Temperature resistance

2. Comparatively high magnetic properties

3. Dimensional Stability


Size Specifications:


Diameter (MM) Thickness/Height/Length (MM)
1.5-3.0 1.0-25.0
3.0-5.0 1.0-102.0
5.0-30.0 1.0-300.0
30.0-50.0 3.0-300.0
50.0-100.0 5.0-300.0
100.0-260.0 20.0-400.0

Physical Properties of Cast Alnico
Curie Temperature () 760-890
Max. Operating Temperature () 450-550
Resistivity (μohm.cm) 47-54
Hardness (Hv) 520-630
Density (g/cm³) 6.90-7.30
Relative Recoil Permeability (μrec) 1.70-4.70
Saturation Field Strength (kOe,kA/m) 2.7-6.3/215-500
Temperature Coefficient of Br (%/) -0.025 ~ -0.02
Temperature Coefficient of iHc (%/) +0.01 ~ +0.03

Applications:

Precision magnetic sensors for balance

Guitar pickups

Sensitive Relays and transformers

Speakers

Typical Magnetic Properties


Grade MMPA Equivalent Br Hcb Hcj (BH)max Remark
mT Gs kA/m Oe kA/m Oe kJ/m3 MGOe
LN10 Alnico3 600 6000 40 500 43 540 10 1.20 Isotropic
LNG13 Alnico2 680 6800 48 600 51 640 13 1.60
LNGT18 Alnico8 580 5800 90 1130 92 1160 18 2.20
LNG37 Alnico5 1200 12000 48 600 49 610 37 4.65 Anisotropic
LNG40 1250 12500 48 600 49 610 40 5.00
LNG44 1250 12500 52 650 53 660 44 5.50
LNG52 Alnico5DG 1300 13000 56 700 57 710 52 6.50
LNG60 Alnico5-7 1350 13500 59 740 60 750 60 7.50
LNGT28 Alnico6 1000 10000 58 720 59 740 28 3.50
LNGT36J Alnico8HC 700 7000 140 1750 148 1850 36 4.50
LNGT38 Alnico8 800 8000 110 1380 112 1400 38 4.75
LNGT44 880 8800 120 1500 122 1530 44 5.50
LNGT60 Alnico9 900 9000 110 1380 112 1400 60 7.50
LNGT72 1050 10500 112 1400 114 1430 72 9.00
