Rubber Coated Magnetic Cup Assemblies,Neodymium Magnetic System with Screwed Bush and Rubber Coat,Magnet Systems with Internal Thread ,Rubber Covered Magnetic Systems with Screw Thread

Material: Rubber and Neodymium magnet, Metal
Application:magnetic Holding, Lifting, Antenna Mounting, Positioning, Retrieving and more.
Quantity:
Inquire

  • DunBen

Rubber Coated Neodymium Magnetic System with Screwed Bush

Rubber coated magnet cup assemblies are specially used in the places where people don’t want magnet holders scratch steel surfaces or paint coating.

These systems is made of  eco-friendly rubber outside and built-in strong neodymium magnet and metal iron,then sealed by injection molding process.this type of pot magnets is ideal for use on surfaces which should not be scratched and ensures a safe contact surface when you apply the magnetic sign gripper onto the cars etc. the service life increased and it also protects the surface from being damaged.

It used be applied into holding, fastening and handing obejects, or in some home kitchen and industrial application. Our company have 4 types of this magnets with big one D88mm,  D66mm ,D43 and small one D22mm dimension. Also we could design and produce similar or special holding magnets with customers’ requirements.

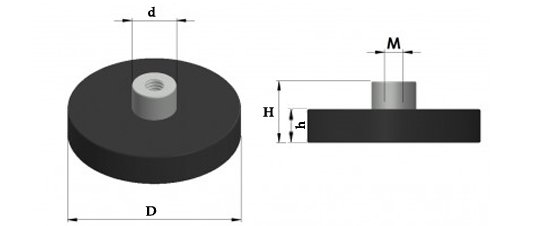

NMH9-3
Grade Dimensions Weight  Pull Force
D M d h H (g.) (kg.)
NMH8-22 22 4 8 6 11.5 12 5
NMH8-43 43 4 8 6 12 33 8
NMH8-66 66 6 10 8.2 14.2 104 20
NMH8-88 88 8 12 8.5 15.8 200 42
