Rubber Coated Neodymium Cup Magnetic Assembly With Through Thread. Rubber coated magnet with eco-friendly rubber outside and built-in strong neodymium magnet and metal iron,then sealed by injection molding process.this type of pot magnets is ideal for use on surfaces which should not be scratched and ensures a safe contact surface when you apply the magnetic sign gripper onto the cars etc. the service life increased and it also protects the surface from being damaged.
It used be applied into holding, fastening and handing obejects, or in some home kitchen and industrial application. Our company have 4 types of this magnets with big one D88mm, D66mm ,D43 and small one D22mm dimension. Also we could design and produce similar or special holding magnets with customers’ requirements.

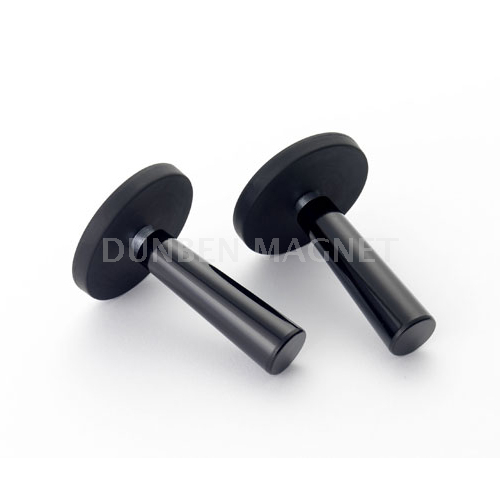

This type of handling magnet is assembled with a plastic handle, 6 pieces super powerful magnets, and a steel plate. In order to prevent the magnetic system from scratching and corrion damage in daily using, we surround the whole magnetic assembly with rubber coating. Designed with a long handle fixed on the top, giving the user extra leverage when positioning often delicate vinyl media. Also, they are suitable for other holding applications when in contact with steel surfaces.d the whole magnetic assembly with rubber coating.

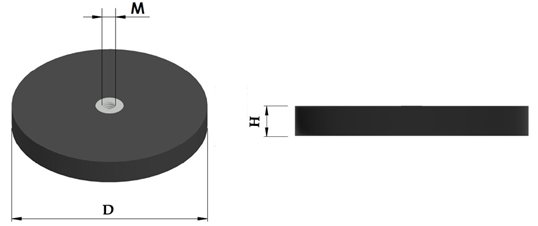

| Grade || Dimensions || Weight || Pull Force |
| D || M || H || (g.) || (kg.) |
| NMH9-22 || 22 || 4 || 6 || 12 || 6 |
| NMH9-43 || 43 || 4 || 6 || 33 || 8 |
| NMH9-66 || 66 || 6 || 8.2 || 104 || 20 |
| NMH9-88 || 88 || 8 || 8.5 || 200 || 42 |
