Samarium Cobalt Flat Pot Magnet with Screwed Bush , SmCo Round Base Pot Magnet with Internal Female Threaded (Boss Mounting) , Samarium Cobalt Shallow Pot Threaded Bushing, Flachgreifer smco

SmCo Shallow Pot Magnets:
• 200° maximum operating temperature
• Excellent resistance to corrosion
• Mild steel pot with zinc or nickle plated body
• Coating: Zinc, Nickel or according to customer’s requirement
Quantity:
Inquire

Product Details:
Samarium-cobalt(SmCo) magnets are the second most powerful magnets, with Neodymium being the most powerful. SmCo Shallow Pot Magnets are also rare-earth metal based. The main components are samarium (Sm) and cobalt (Co), two elements that can be mixed in ratio 1:5 or 2:17. The final composition takes effect on magnetic and thermal parameters of magnets. A hard and brittle material, SmCo has high energy and is very resistant to external demagnetizing fields. Maximum working temperature is up to +250°C (SmCo5) and up to +300°C (Sm2Co17)

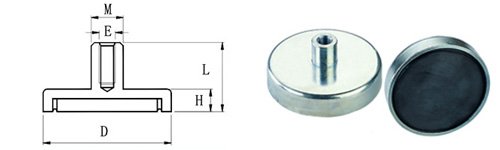

smp5
Code Shell Dimensions(mm) Weight(g) Pull(N)
D H L M&E
PSC3-01 Fe37 6 4.5 11.5 6 & M3 1.5 5
PSC3-02 Fe37 8 4.5 11.5 6 & M3 2 12
PSC3-03 Fe37 10 4.5 11.5 6 & M3 3 24
PSC3-04 Fe37 13 4.5 11.5 6 & M3 5 48
PSC3-05 Fe37 16 4.5/6 11.5 6/8 &M4 7.5 76
PSC3-06 Fe37 20 6 13 8 & M4 16 120
PSC3-07 Fe37 25 7 14 8 & M4 25 200
PSC3-08 Fe37 32 7 15.5 10 & M5 48 350
