Samarium Cobalt Pot Magnet with External Male Threaded Stud,Samarium Cobalt Pot magnets with threaded stem,Samarium Cobalt magnet glued to steel cup,Samarium Cobalt Pot Magnet with Boss Mounting

SmCo Pot Magnet with external male threaded
• 350° maximum operating temperature
• Excellent resistance to corrosion
• Mild steel pot with zinc or nickle plated body
• Coating: Zinc, Nickel or according to customer’s requirement
Quantity:
Inquire

Product Details:
Samarium-cobalt(SmCo) magnets are the second most powerful magnets, with Neodymium being the most powerful. SmCo Shallow Pot Magnets are also rare-earth metal based. The main components are samarium (Sm) and cobalt (Co), two elements that can be mixed in ratio 1:5 or 2:17. The final composition takes effect on magnetic and thermal parameters of magnets. A hard and brittle material, SmCo has high energy and is very resistant to external demagnetizing fields. Maximum working temperature is up to +250°C (SmCo5) and up to +300°C (Sm2Co17)

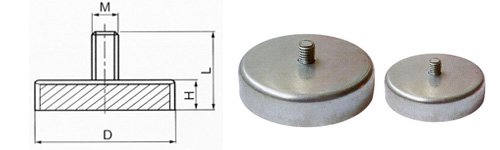

smp4
Code Shell Dimensions(mm) Weight(g) Pull(N)
D H L M
PSC4-01 Fe37 10 4.5 12.5 M4 3 24
PSC4-02 Fe37 13 4.5 12.5 M5 5 48
PSC4-03 Fe37 16 4.5 12.5 M6 8 80
PSC4-04 Fe37 20 6 16 M6 12 120
PSC4-05 Fe37 25 7 17 M6 21.5 215
PSC4-06 Fe37 32 7 17 M6 36 360
