Samarium Cobalt deep pot magnet ,SmCo pot magnets with hole,Samarium Cobalt Pot Magnet Thread Hole Mounting

Samarium Cobalt deep pot magnet:
1.High resistance to demagnetization
2.Good temperature stability
3.Resistance to high temperature
4.Excellent resistance to corrosion
5.200° maximum operating temperature
6.Coating:Nickel,Zn
Quantity:
Inquire

Product Details:
Samarium-cobalt(SmCo) magnets are the second most powerful magnets, with neodymium being the most powerful. SmCo deep pot magnets are also rare-earth metal based. The main components are samarium (Sm) and cobalt (Co), two elements that can be mixed in ratio 1:5 or 2:17. The final composition takes effect on magnetic and thermal parameters of magnets. A hard and brittle material, SmCo has high energy and is very resistant to external demagnetizing fields. Maximum working temperature is up to +250°C (SmCo5) and up to +300°C (Sm2Co17)

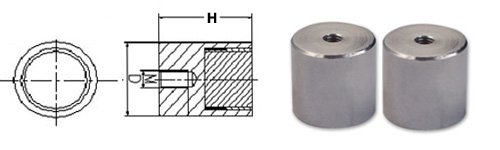

smp2
Code Shell Dimensions(mm) Coating Pull(N)
D H M
PSC2-01 Fe37 6 6 3 Zn 5
PSC2-02 Fe37 8 6 3 Zn 12
PSC2-03 Fe37 10 6 4 Zn 25
PSC2-04 Fe37 13 8 4 Zn 50
PSC2-05 Fe37 16 8 5 Zn 80
PSC2-06 Fe37 20 10 5 Zn 120
PSC2-07 Fe37 25 13 6 Zn 200
