Segment neodymium magnet for wind turbine generator motors
Segment neodymium magnet for wind turbine generator motors
Segment neodymium magnet for wind turbine generator motors
Segment neodymium magnet for wind turbine generator motors
Share to:

Segment neodymium magnet for wind turbine generator motors

Material: NdFeB Magnets, Arc Segment Neodymium Magnets
Dimension: R(mm)x r(mm)x W(mm)x T(mm)x A℃ with tolerance +/-0.1 or +/-0.05mm
Magnetizating Direction: Thickness
Surface Treatment: Ni,Zn
Max Working Temperature: 80℃-220℃
Grade: N42, N45 , N42SH and customized

Quantity:
Inquire Add to Basket

  • N35--N52, N35M--N50M, N35H--N48H, N35SH--N45SH, N28UH--N42UH, N28EH--N40EH
  • DunBen
Description:
Arc Segment Magnets is one special shape of permanent magnets, which widely assembly into rotor and stator of PM Servo motors. It is always manufactured via Wire Cutting and grinding machining process etc .  With rich experience on serving for motors manufacturer, Dunben Magnet can produce all shapes of arc segment magnets with different coatings, such as NiCuNi, Black Ni, Epxoy and Phosphatised coating.

Name Sintered segment neodymium magnet
Material Neodymium Iron Boron

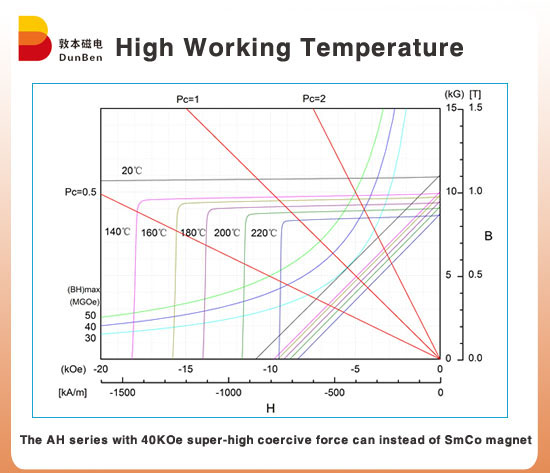

Grade & working Temperature Grade Max. Operating Temperatures
N35-N45 80°C     (176°F)
N48-N52 60°C     (160°F)
35M- 50M 100°C   (212°F)
33H-48H 120°C   (248°F)
33SH-45SH 150°C   (302°F)
30UH-40UH 180°C   (356°F)
28EH-38EH 200°C   (392°F)
28AH-33AH 220°C   (428°F)
Shape segment
Coating Ni,Zn,Gold,Sliver,Epoxy,Chemical plating ,Cu,Chrome
Certificate ISO9001, RoHS, CE
Packing Standard sea or air packing, such as carton, wooden box, etc.
Delivery date 7 days for samples;15-20 days for mass goods after confirming the grade,size and coating!
Application  widely used in magnetic motors, automotive instruments, medical equipments, wind-power generation, aerospace and military industries.
We will offer you the professional solution and best price according to your information,especially the grade, size, and quantity.

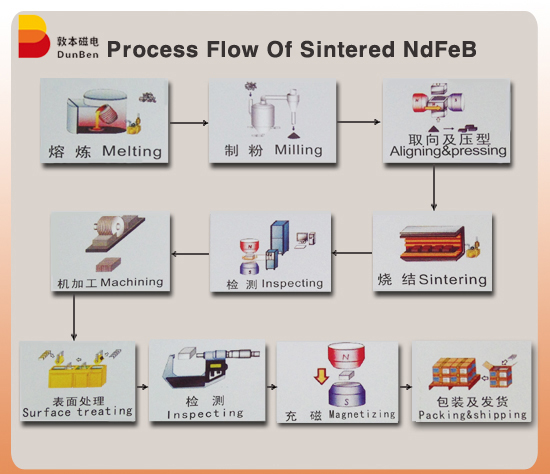

Product flow
