Square Magnetic Filter Bars,Permanent Square Magnetic Tube,Square Magnetic Cartridges,Square Magnetic Bars,Cartridge Magnets,Square Magnetic Rod for Separator

Square Magnetic Filter Bar:
Material: SS304/316/316L Stainless steel tube+ Neodymium (Nd) magnet or Ferrite magnet
Width :16mm,19mm,22mm,25mm,28mm,32mm
Thread:No,M6,M8,M10
Length:100-500 mm or customized
Surface Gauss:6000-10000 Gs
Work Temp: ≤300 degree

Quantity:
Permanent Square Magnetic Tube /Cartridge Magnets/ Filter Magnetic bar

Square Magnetic bars is a special magnet tubes for magnetic separator ,so they also can be called square  filter rod magnets. Compare round magnetic bars with max magnetic force 12000gs Their Max magnetic strength can up to 10000Gs, Permanent Magnets can be sourced from NdFeb,SMCo,Ferite Magnets. 304 and 316L stainless steel tube available. In general, Squre magnet tubes always used into sepcail situation. such as many suqure tube can make into special conveyor magnetic separators to remove fine metal ferrous. Custom made available according to your requirement.

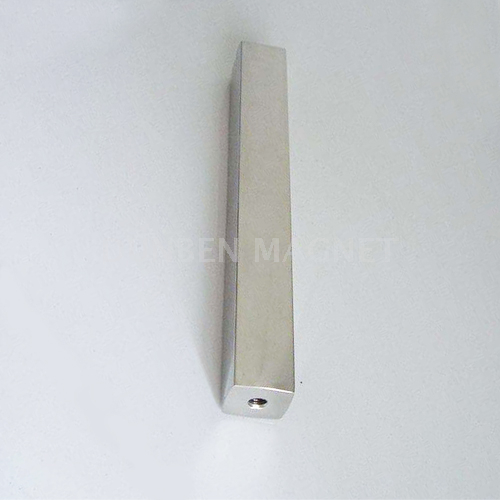

magnetic square bar7

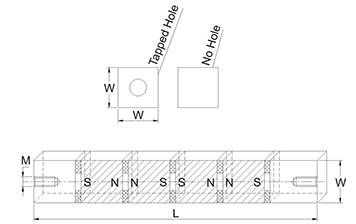

magnetic bar draw6
Material of the Magnetic bar SS304/316/316L Stainless steel tube+ Neodymium (Nd) magnet and or Ferrite ,Smcomagnets
Width(W) 16mm,19mm,22mm,25mm,28mm,32mm
Length(L) 100-500mm or customized
Thread(M) No,M6,M8,M10
Surface Gauss 6000-10000Gs
Standard Working Temp <300 degree
Advantages of magnetic fuel filter No energy consumption, pollution-free, simple structure, can be installed on production lines or pipes in the entrance and exit, the space-saving, easy installation and so on
Applications of magnetic filter Water treatment, Chemical industry, food industry, recycling industry, pharmaceutical industry, other liquid(hydro-material) separation application.
