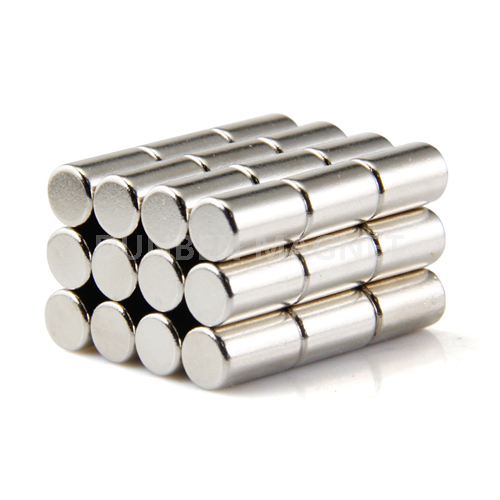

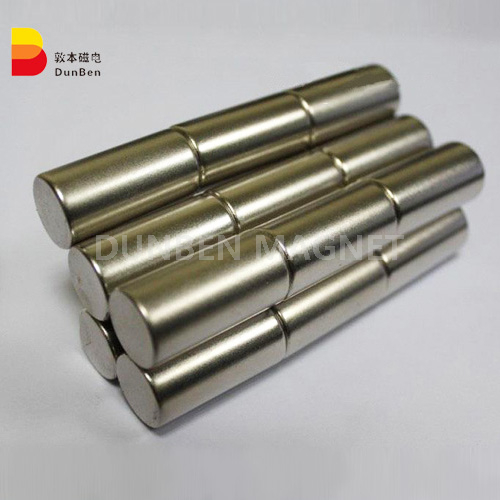

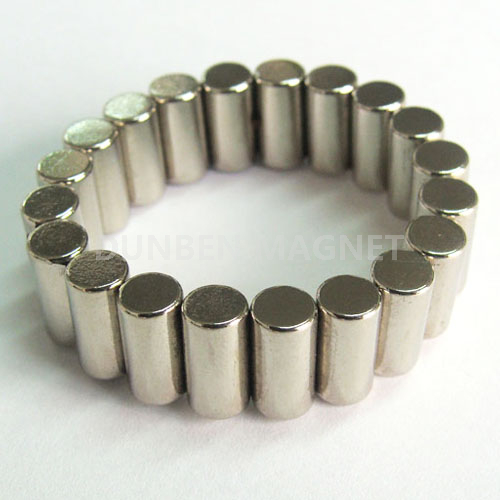

Strong Disc Cylinder D6x10mm Rare Earth Neodymium Magnets Small Round

Strong Disc Cylinder Rare Earth Neodymium Magnets :
Shape: Disc
Dimension: Diameter 6mm x thickness 10mm
Material: Neodymium magnets
Certification:RoHS passed
Grade: N35
Magnetization: Axially magnetized / Poles on Flat Ends
Max Operating Temperature: 80°C/176°F
Plating: nickel copper nickel triple layer plated

Quantity:

Product Information:



Description:

Strong Disc Cylinder D6x10mm Rare Earth Neodymium Magnets Small Round


Material:

Neodymium-Iron-Boron


Product Name:

NdFeB Magnets, Sintered Rare Earth Magnets, Neodymium-Iron-Boron Magnets, Permanent Magnets



Working Temperature:

Grade

Temperature


N28,N30,N35,N38,N40,N42,N45,N48

80ºC


N50,N52,N55

60ºC


N30M,N33M,N35M,N38M,N40M,N42M,N45M,N48M,N52M

100ºC


N28H,N30H,N33H,N35H,N38H,N40H,N42H,N45H,N48H,N50H

120ºC


N28SH,N30SH,N33SH,N35SH,N38SH,N40SH,N42SH,N45SH,N48SH

150ºC


N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH

180ºC


N28EH,N30EH,N33EH,N35EH,N38EH

200ºC


N28AH,N30AH,N33AH

220ºC


Magnet Shape:

Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid and Irregular shapes and more. Customized shapes are available




Magnet Coating:

Ni-Cu-Ni, Zn, Au, Ag/silver, Epoxy, Passivation, Phosphate, etc.


Features:

The most powerful permanent magnet, offers a great return for cost & performance, have the highest field/surface strength (Br), high coercivity (Hc), can be easily formed into various shapes and sizes. Be reactive with moisture and oxygen, usually supplied by plating (Nickel, Zinc, Passivation, Epoxy coating, etc.).





Applications:

Sensors, motors, filter automobiles, magnetics holders, loudspeakers, wind generators, medical equipment, etc.

ndfeb characteristics.pdf

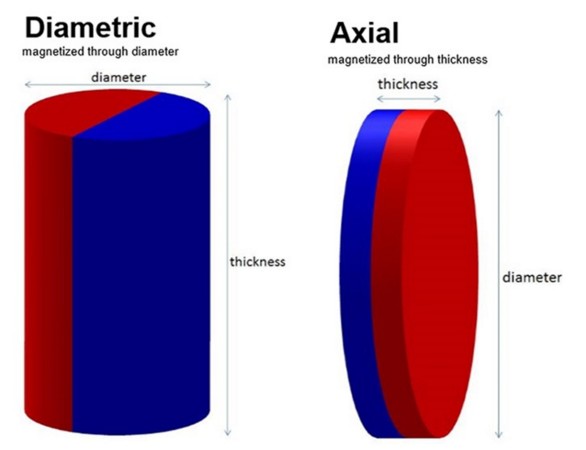

The Magnetization Direction:
magnetized direction2

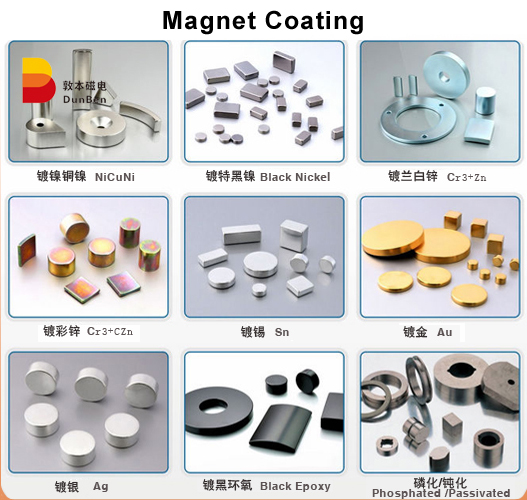

Magnet Coating:
ndfeb coating.jpg

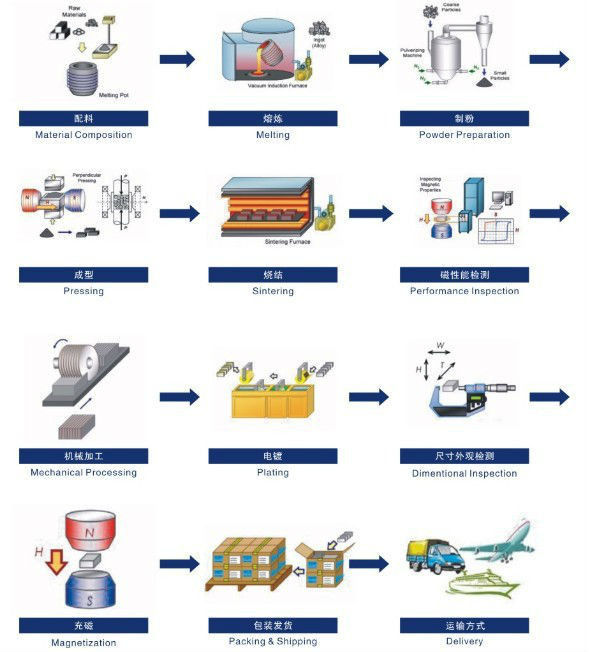

flow2
