Strong Power Neodymium Mounting Pot Magnet with Flat Hole,Holding Power Neodymium Cup pot Magnet With Cylindrical Borehole

·Size: As per the table. Customer tailored design are available.
·Superior holding and pull strength
·Wide range of magnets
·Made with Neodymium magnets + Steel cup
·Coating: Nickel or Zn as per customers requirement.
·Optimum, stable performance
·Mature Technology
Quantity:
Inquire

  • DunBen

NdFeB Mounting Round Base Pot Magnet
NdFeB round base pot magnet is made of neodymium ring magnet ,it consists of a sintered alloy of neodymium and the elements boron and iron. this alloy has highly coercive, magnetic remanence and energy and is stronger than any other permanent magnet material.  It has a maximum pull of between 90N and 510N.

This cup magnet is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

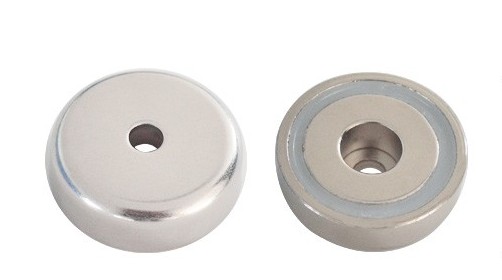

ndfeb pot magnet22
Custom sized Pot Magnet s can be made upon request.

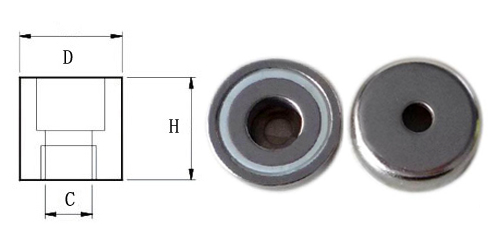

pnd12

Code Shell Dimensions(mm) Weight(g) Pull(N)
D H D1 D2
PND9-01 Fe37 10 4.5 3.5 6.6 2.13 19
PND9-02 Fe37 13 4.5 3.5 6.6 3.75 49
PND9-03 Fe37 16 4.5 3.5 6.6 5.7 90
PND9-04 Fe37 20 6 4.5 9 12.5 110
PND9-05 Fe37 25 7 4.5 9 23.5 150
PND9-06 Fe37 32 7 5.5 11 38.5 280
PND9-07 Fe37 36 8 5.5 11 50 310
PND9-08 Fe37 40 8 5.5 11 74 510
PND9-09 Fe37 42 9 6.5 11 90 570
PND9-10 Fe37 48 11 8.5 15 120 610
PND9-11 Fe37 50 11 8.5 15 140 780
PND9-12 Fe37 60 15 8.5 15 243 930
PND9-13 Fe37 75 17.8 10.5 18 480 1580
PND9-14 Fe37 80 19 10.5 18 660 1760
PND9-15 Fe37 100 22 12.5 23.8 1290 3520
