Super Powerful N45SH Grade Large Arc Neodymium Magnets

Product Name: Super powerful large arc Neodymium Magnets
Material :Permanent Neodymium Magnet
Grade: N45SH
Surface Treatment: Nickel or Zinc Plated
Max Working Temperature: 150℃

Quantity:
  • DunBen
Product description:
Arc Segment Magnets is one special shape of permanent magnets, which widely assembly into rotor and stator of PM Servo motors. It is always manufactured via Wire Cutting and grinding machining process etc .  With rich experience on serving for motors manufacturer, Dunben Magnet can produce all shapes of arc segment magnets with different coatings, such as NiCuNi, Black Ni, Epxoy and Phosphatised coating.

Generally, arc segments are anisotropically aligned through the outer and inner radii of the segment. After the magnet has been surface ground to profile the Arc radius or pressed, we magnetized it through the radius of the arc. (See diagram below)

arc draw3
Dunben Magnet Co.,Ltd can design, produce and supply magnetic rotor assemblies to customer requirements.
motor magnet3

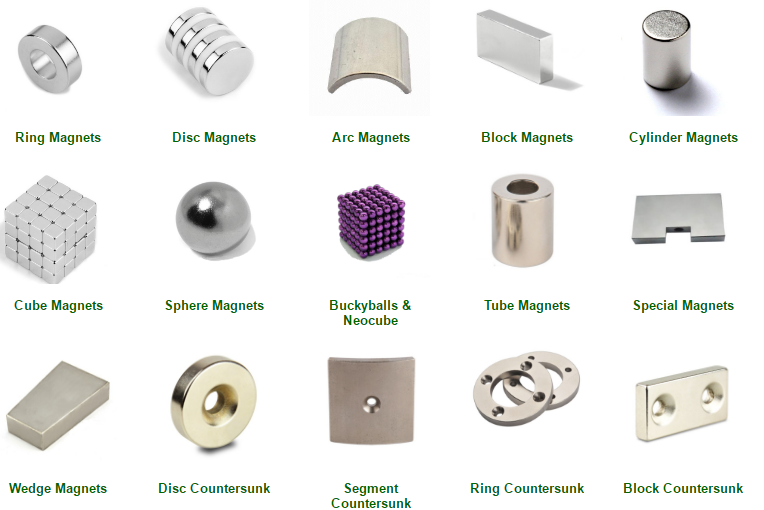

Other sizes, shapes, grades and coatings of Motor, Generator, Rotor Permanent Magnets (NdFeB arc segment block) are available
The-Various-Shapes-of-Neodymium-magnets
Product Feature:


Product Name Super Powerful N45SH Grade Large Arc Neodymium Magnets
Shape
Arc/ Customzsed  (block,disc,Cylinder, Bar, Ring, Countersunk, Segment,

ball shape,hook,cup, Trapezoid, Irregular shapes ,etc)
Performance N45SH /Customised (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...)
Size:  Various kinds or according to customers' request
Coating Ni-Cu-Ni, Nickel  /   Customised (Zn,NiCu-Ni,Ni,Gold, Silver, Copper, Epoxy, Chrome ,etc)
Size Tolerance


±0.05mm for diamater/thickness, ±0.1mm for width/length
Magnetization
Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multipoles magnetized,

Radial Magnetized. (Customzied specific requirements magnetized)
MOQ 10PCS
Application
Super Strong N45SH Neodymium Magnet  are widely used in many fields, such as motors, sensors,

microphones, wind turbines, wind generators,  printer, switchboard,packing box ,

loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect.
Lead Time Within 20 working days

Magnetization
ndfeb coating.jpg
